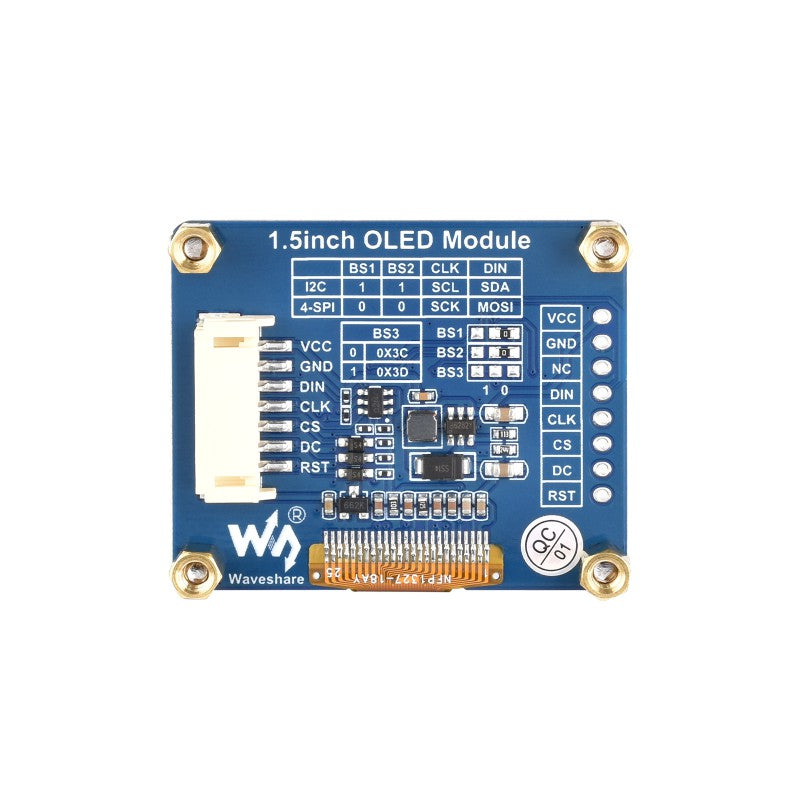

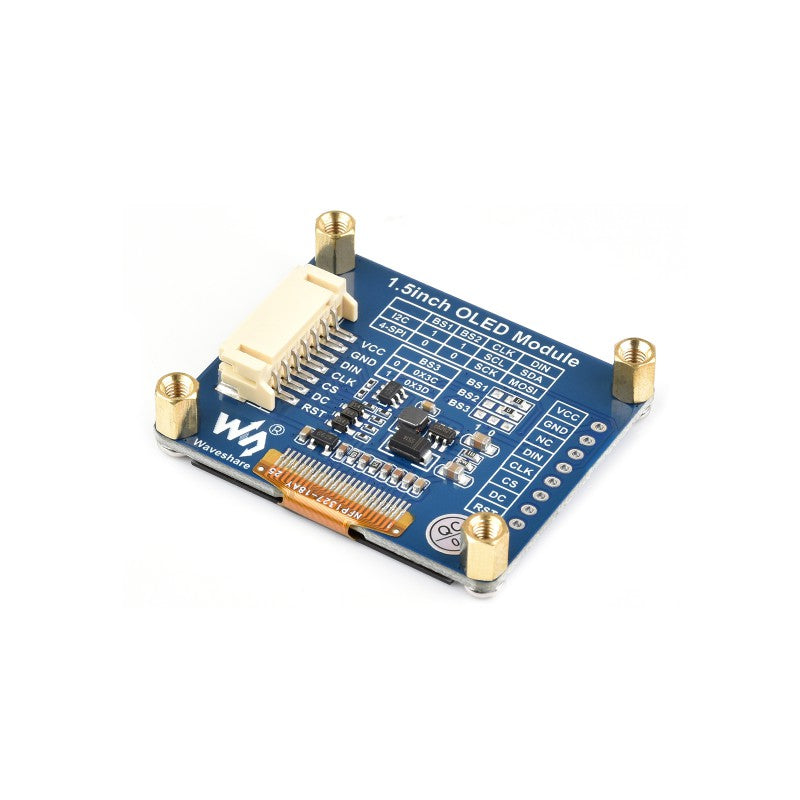

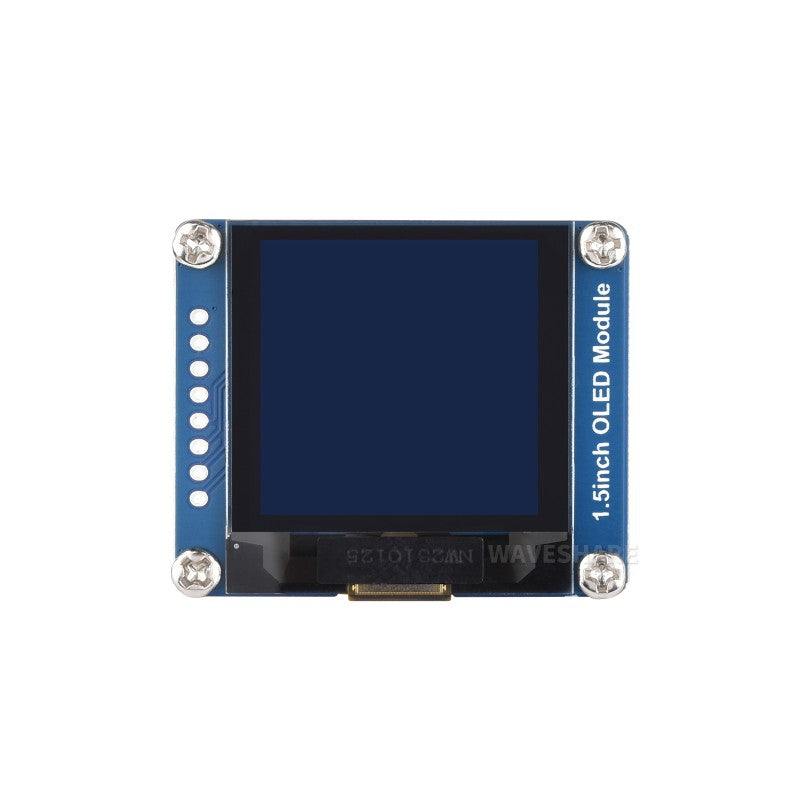

1.5inch OLED display Module - 16 Level Grayscale 128x128
Waveshare | SKU:
WS-13992
$21.70 AUD
Unit price
/
Unavailable
$19.73 exc GST
1.5inch OLED display Module - 16 Level Grayscale 128x128 has a 5-10 day lead time before dispatch. Order will only be sent once all items are available for delivery.
★
★
★
★
★
1.5inch OLED display Module - 16 Level Grayscale 128x128
$21.70 AUD
Unit price
/
Unavailable
Features
- Ultra-narrow bezel, conpact size, with onboard voltage translator
- Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
| Operating voltage | 3.3V / 5V | DISPLAY PANEL | OLED |
|---|---|---|---|
| Resolution | 128 × 128 pixels | PIXEL SIZE | 0.185 × 0.185mm |
| Communication Interface | 4-wire SPI / I2C | Driver | SSD1327 |
| Display size | 26.86 × 26.86mm | Module size | 44.5 × 37.0mm |
Pinout
| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| DIN | Data input |
| CLK | Clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
Hardware connection
Connecting with Raspberry Pi via SPI interface
Connecting with Arduino board via SPI interface
Dimensions
