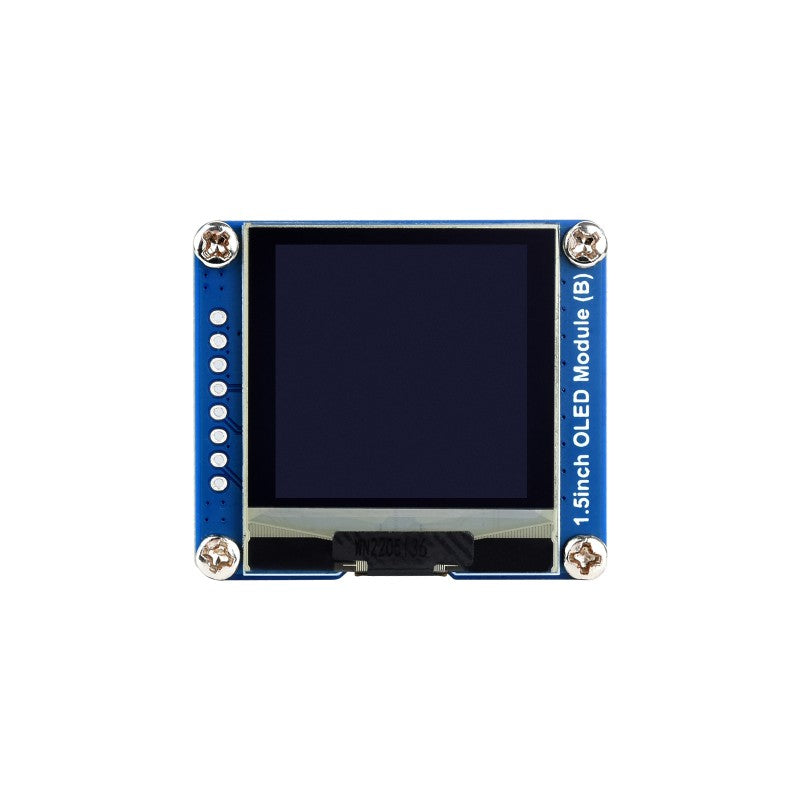

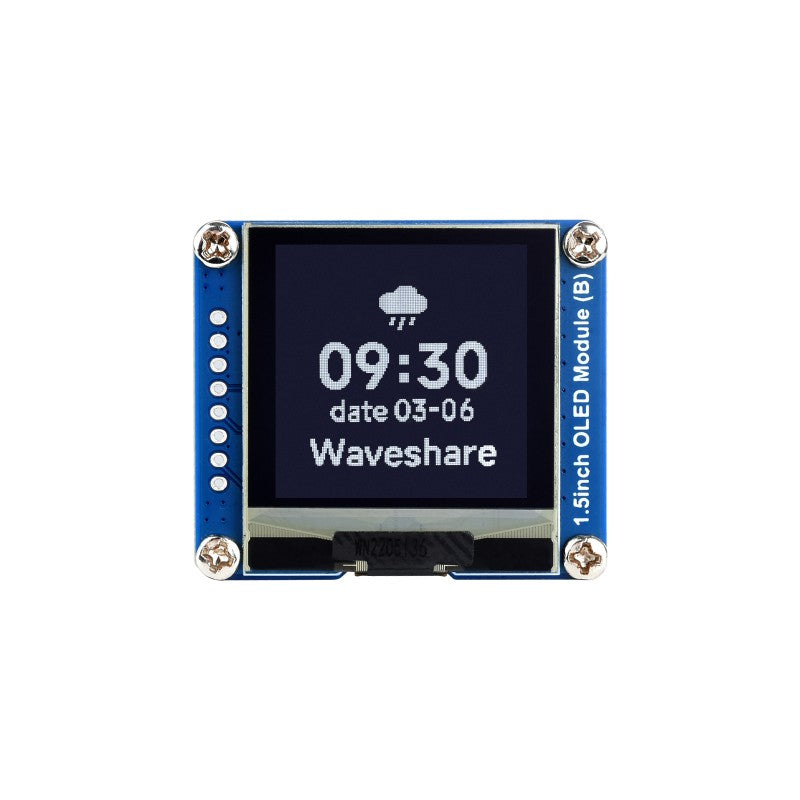

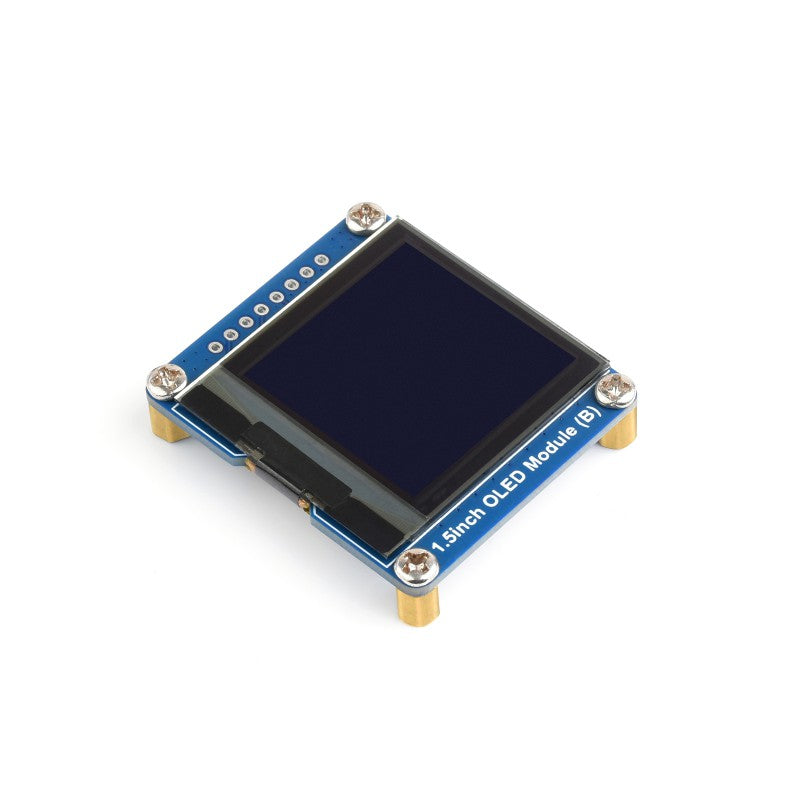

1.5inch OLED display Module
Waveshare | SKU:
WS-25093
$16.75 AUD
Unit price
/
Unavailable
$15.23 exc GST
1.5inch OLED display Module has a 5-10 day lead time before dispatch. Order will only be sent once all items are available for delivery.
★
★
★
★
★
1.5inch OLED display Module
$16.75 AUD
Unit price
/
Unavailable
Features
- Ultra-narrow bezel, conpact size, with onboard voltage translator
- Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate

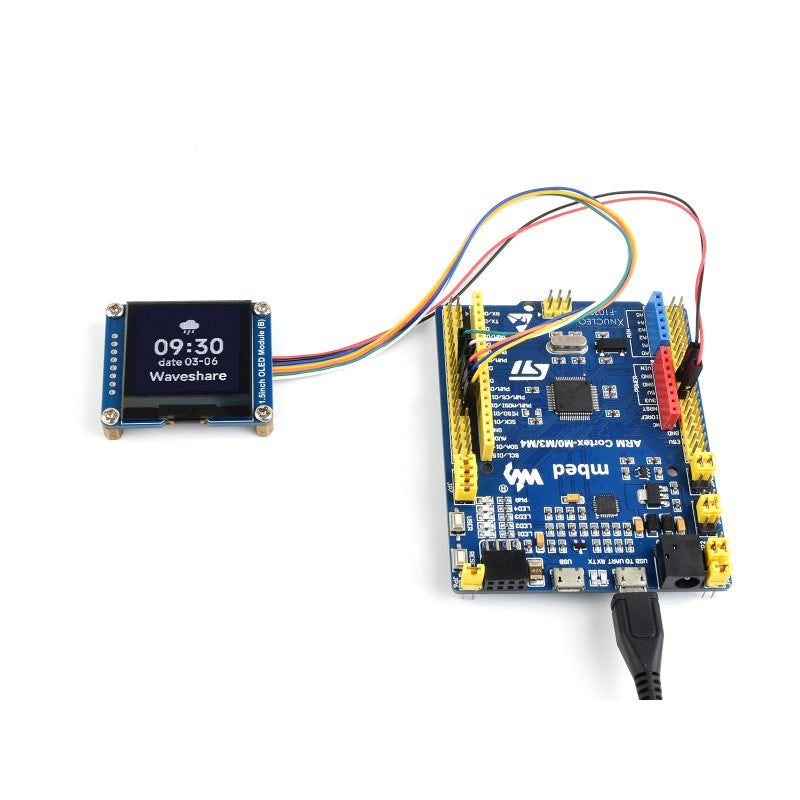

- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
| Operating voltage | 3.3V / 5V | DISPLAY PANEL | OLED |
|---|---|---|---|
| Resolution | 128 × 128 pixels | PIXEL SIZE | 0.185 × 0.185mm |
| Communication Interface | 4-wire SPI / I2C | Driver | SH1107 |
| Display size | 26.855 × 26.855mm | Module size | 38.50 × 44.50mm |

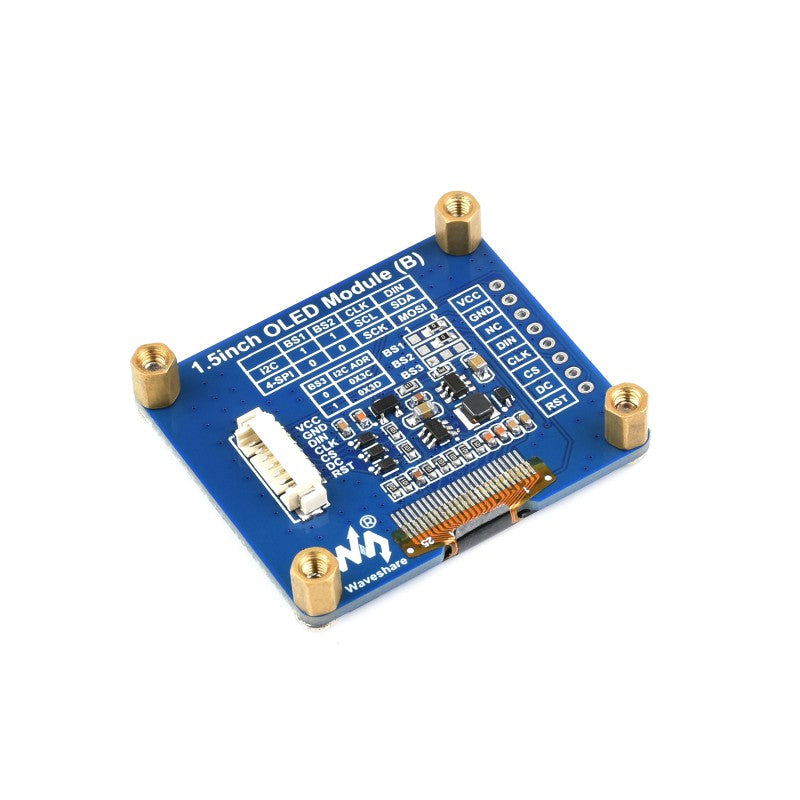

Control Interface
| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| DIN | Data input |
| CLK | Clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
Dimensions
