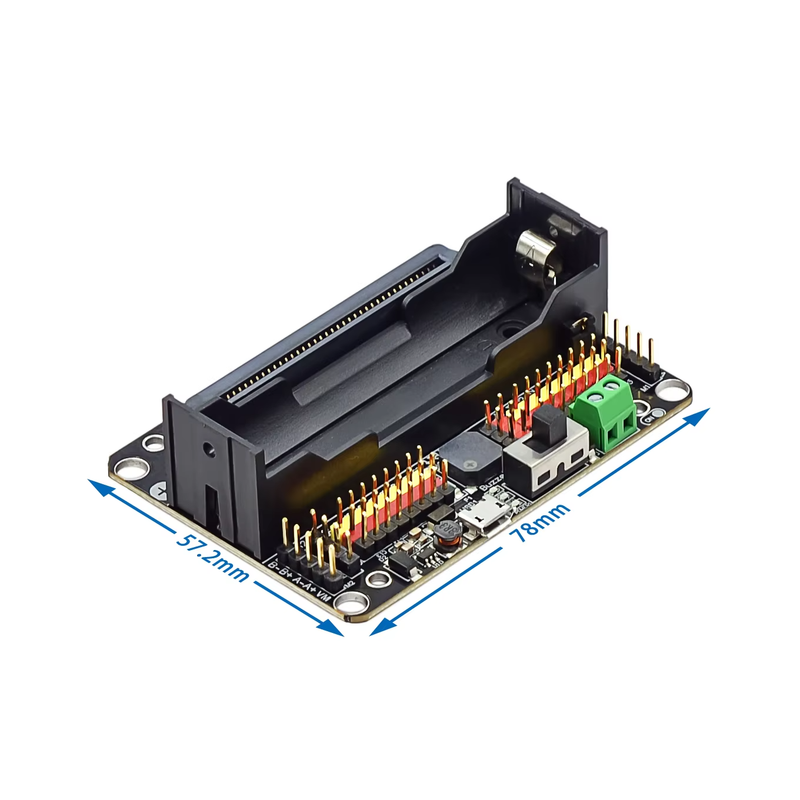

Micro:bit Expansion Shield - Robot:Bit V2.0

Take your Micro:bit projects to the next level with the Robot:Bit V2.0 Expansion Shield! Designed for versatility and portability, this expansion board features a built-in 18650 battery shield and the ability to control servos, DC motors, stepper motors, and more.

Key Features

• Comprehensive Control: Drive DC motors, stepper motors, and servos while utilizing the onboard buzzer and RGB LEDs.
• Full I/O Access: Access all Micro:bit I/O pins, making it compatible with a wide range of sensors and modules for robotics and automation projects.
• Built-in Battery Shield: Keep your projects portable with the integrated 18650 battery case, featuring a power switch, charging port, and indicators for power and battery status.
• Robust Software Support: Fully compatible with Microsoft Makecode, Kittenblock (based on Scratch 3.0), and Python for seamless integration into STEM projects.
• Wide Compatibility: Works with both Micro:bit V1 and V2 variants.

Hardware Highlights

• 5V external power input with reverse protection
• 4-channel DC motor or 2-channel stepper motor support
• 8-channel servo port and I2C interface for expandability
• Integrated servo driver (PCA9685) and motor driver (DRV8833)
• Battery protection recovery button
• LEGO-compatible mounting holes and KittenBot chassis compatibility

Applications

• Robotics and automation projects
• STEM education and learning activities
• Interactive and portable Micro:bit creations

Tips

• Use high-capacity 18650 batteries for extended project runtime.

Package Notes

• Micro:bit modules (v2.2) and 18650 batteries are not included and must be purchased separately.

Unlock the potential of your Micro:bit projects with the Robot:Bit V2.0 Expansion Shield—a versatile, user-friendly solution for beginners and enthusiasts alike!
