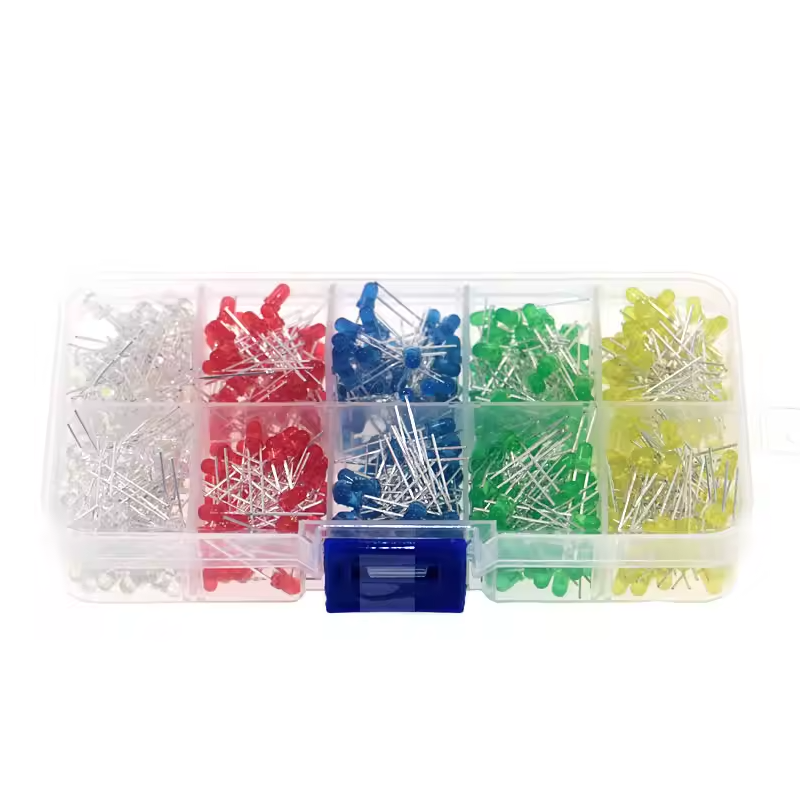

500pcs Assorted 3mm LED Kit – White, Red, Blue, Green & Yellow

This 500-piece 3mm LED kit is a must-have for makers, students and electronics enthusiasts working on compact or detailed projects. It includes 100 diffused LEDs in each of the following colours: white, red, blue, green and yellow.

3mm LEDs are ideal when space is limited. They’re perfect for use in smaller enclosures, indicator panels, model lighting, wearables, or any build where standard 5mm LEDs might not fit. Despite their smaller size, these LEDs still deliver bright, reliable light with a soft diffusion.

Each LED is suitable for breadboarding, soldering onto veroboard, or connecting to GPIO pins. Like all LEDs, they are polarised components—the shorter leg is the cathode (GND/negative). A current-limiting resistor (typically between 220Ω–1kΩ) should be used in series to protect the LED and ensure long life.

The operating voltage ranges from 1.8–2.2V for red, green and yellow, and 2.4–2.7V for white and blue. A current between 16–18mA is recommended, with 20mA being the maximum.

This kit offers excellent value and versatility for any electronics project that needs compact lighting with a professional finish.

Technical Specifications:

• LED Size: 3mm, diffused lens
• Voltage (Red, Green, Yellow): 1.8–2.2V
• Voltage (White, Blue): 2.4–2.7V
• Max Current: 20mA
• Recommended Current: 16–18mA
• Dimensions: Approx. 25 x 3 x 3mm
