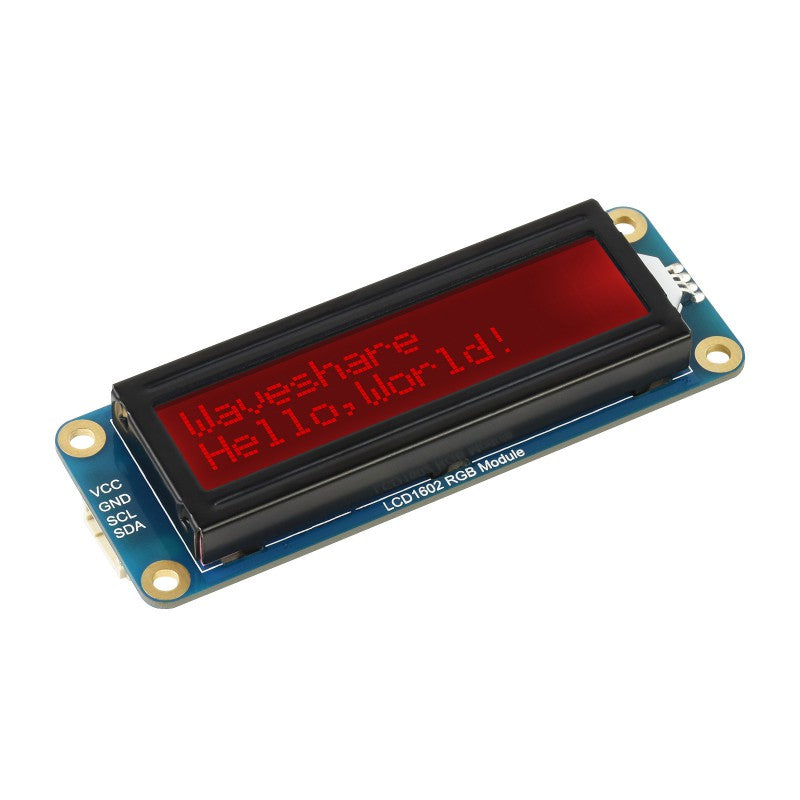

1602 LCD Display RGB Backlight 16x2 - I2C 3.3V/5V
Waveshare  |  SKU:
                    WS-19537

    $21.90 AUD


  Unit price
 /

    Unavailable

            $19.91 exc GST
1602 LCD Display RGB Backlight 16x2 - I2C 3.3V/5V is backordered and will ship as soon as it is back in stock.


Delivery and Shipping



                  Delivery and Shipping
Delivery Options
We offer several delivery choices to fit your needs:
- FREE Delivery: $0. Enjoy Free AusPost Parcel Standard Delivery on orders over $100 in value. Exclusions may apply.
 - AusPost Untracked Letter: $3. Delivery in 3-8 business days (untracked). No refunds or replacements without proof of receiving the order.
 - AusPost Parcel Standard: $9. Tracked delivery in 2-6 business days.
 - AusPost Parcel Express: $13. Express tracked delivery in 1-3 business days.
 - Pickup: $0. Email us to arrange a pickup from our location in Huntingdale 3166 in Melbourne at support@zaitronics.com.au. More details can be found in our contact page.

Additional Information
- Non-metro addresses in WA, NT, SA & TAS may require extra time.
 - Certain batteries (like LiPo) cannot be shipped by air, affecting Express Post availability.
 - We recommend selecting tracked options for valuable items. Untracked orders will not receive tracking numbers or refunds without proof of delivery.
 - Note: Wherever possible, we will combine orders to save on shipping and reduce packaging waste.
 - Note: Orders containing backordered item will delay delivery until all items are available



Warranty & Refund Policy



                  Warranty & Refund Policy
Warranty & Refund Policy
- Standard Warranty: 12 months for all products. Low-cost hobby parts have a 90-day warranty unless safe handling is shown.
 - Exceptions: Kits and interfaceable electronics may not be covered if damaged due to misuse.
 - Returns: Contact support via your order confirmation email within 14 days of purchase. Items must be unopened and in original packaging. Proof of purchase is required.
 - Defective/Damaged Items: Notify us within 30 days for a free refund or replacement. Exclusions apply.
 - Return Shipping Costs: Paid by the customer unless the item is defective. Shipping costs are non-refundable.

Features at a glance
- Incorporates character LCD panel LCD1602
 - Adjustable RGB backlight color, up to 16M (2563) backlight colors in theory
 - I2C control interface, only two signal pins are required, saving the IO resource
 - Compatible with 3.3V/5V operating voltage
 - Comes with development resources and manual (Raspberry Pi/Jetson Nano/Arduino examples)

Specifications
| Operating voltage | 3.3 ~ 5V | LCD controller | AiP31068 |
|---|---|---|---|
| Communication Interface | I2C | RGB driver | PCA9633 |
| Display Panel | character LCD | Display size | 64.5 × 16.0mm |
| Characters | 16 × 2 | Dimensions | 87.0 × 32.0 × 13.0mm |
| Backlight colors | 16M | Operating voltage | -20 ~ +70℃ |
I2C control interface
for connecting with host boards like Raspberry Pi / Arduino...

| VCC | 3.3V ~ 5V power input |
| GND | GND |
| SCL | I2C clock pin |
| SDA | I2C data pin |

Wiki: LCD1602_RGB_Module
