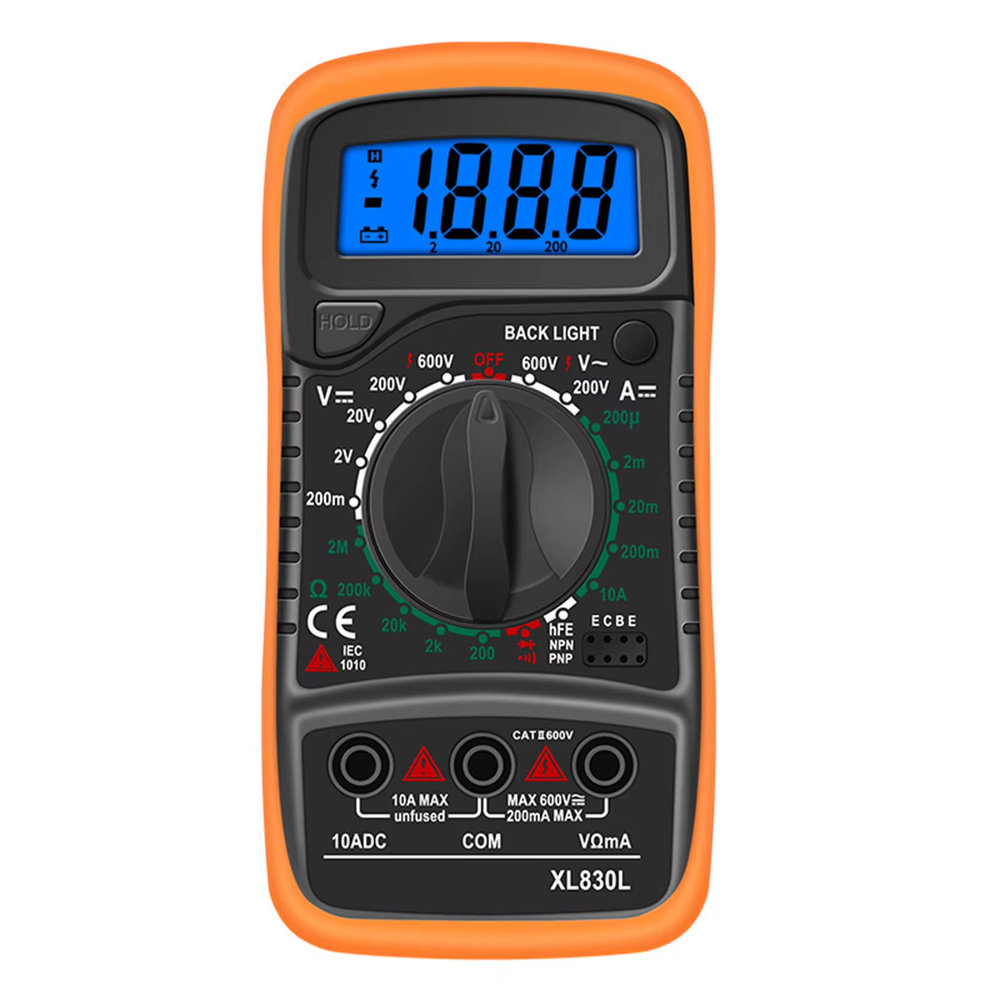

Digital LCD Multimeter
$10.50 AUD
Unit price
/
Unavailable
This LCD Digital Multimeter is a versatile and essential tool for anyone working with electronics. Featuring a large 15mm display with a backlight, it ensures clear and easy-to-read measurements in various lighting conditions.
Key Features:
- Large LCD Display: 3-1/2 digits with a maximum display of 1999 counts, auto polarity display, and updates 2 to 3 times per second.
- Multi-Functionality: Measures DC and AC voltage, DC current, resistance, and includes diode, transistor, and continuity tests with a buzzer sound.
- Portable Design: Compact and lightweight, making it easy to carry and operate.
- Overload Protection: Equipped with a 200 mA / 250 V fuse for most ranges, ensuring safety during use.
- Battery Operated: Requires a 9V battery (Battery not included)
Specifications:
- DC Voltage: 2V / 20V / 200V / 600V
- AC Voltage: 200V / 600V
- DC Current: 20µA / 200µA / 2mA / 20mA / 200mA / 10A
- Resistance: 200Ω / 2KΩ / 20KΩ / 200KΩ / 2MΩ
- Size: Approx. 138 mm × 69 mm × 31 mm
- Weight: Approx. 160 g
- Maximum Voltage: CAT II 600 V between terminals and Earth Ground
- Fuse Protection: F 200 mA / 250 V
- Operating Environment: 0 °C to 40 °C
- Storage Temperature: -10 °C to 50 °C
Applications:
- Circuit Board Overhaul: Ideal for repairing and testing various circuit boards.
- Educational Tool: Perfect for students learning about electronics.
- Field Use: Suitable for laboratory, workshop, and home applications.
Safety Notes:
- Ensure to remove the test leads and power off the device before replacing the battery or fuse.
- Do not exceed the voltage limits of 1000VDC or 750VAC.
- Avoid using the multimeter if the back cover is not properly secured.
This LCD Digital Multimeter is a reliable and user-friendly instrument, perfect for both beginners and professionals in the field of electronics. Whether you’re troubleshooting circuits or conducting educational experiments, this multimeter provides accurate and dependable measurements
