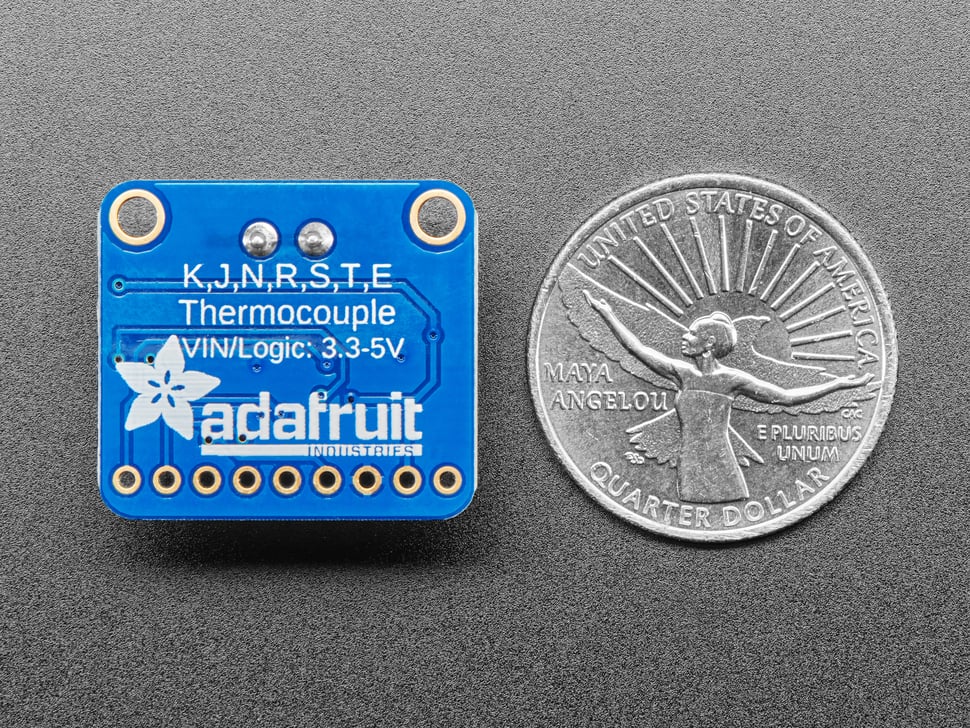

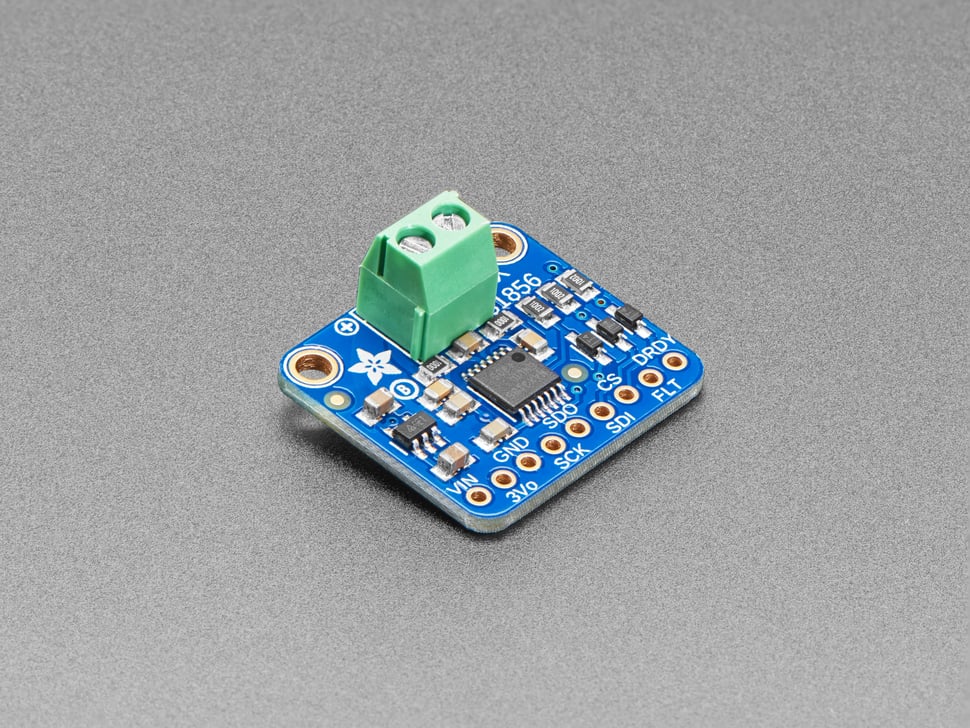

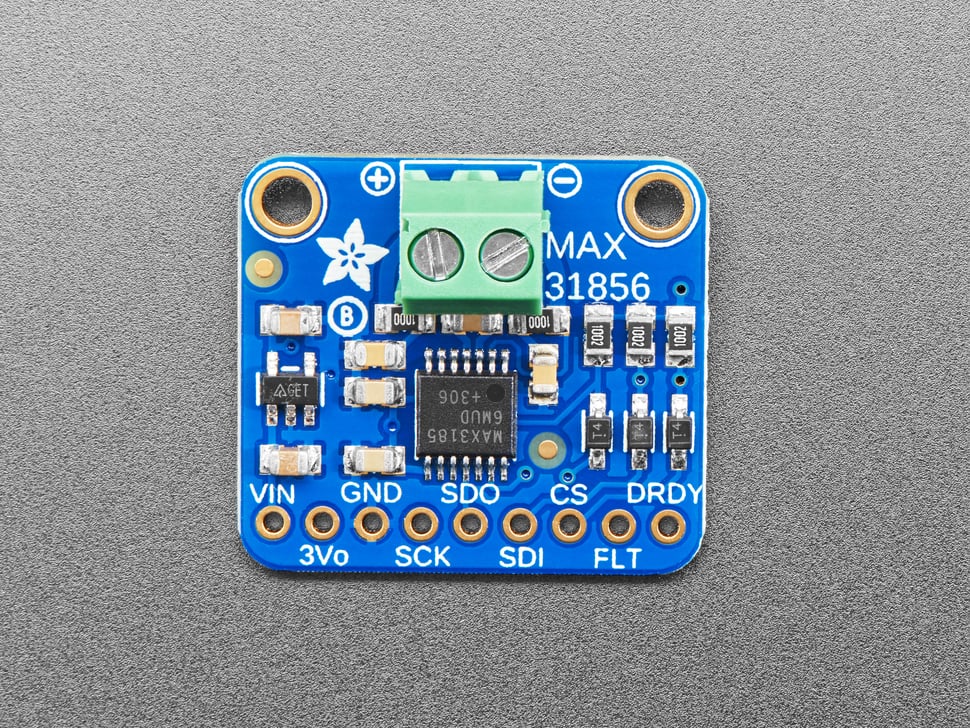

Adafruit Universal Thermocouple Amplifier MAX31856 Breakout
Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference, as well as calculations to handle any non-linearities. We're happy to offer a great new thermocouple amplifier/converter that can handle just about any type of thermocouple, and even has the ability to give you notification when the temperature goes out of range, or a fault occurs. Very fancy!
This converter communicates over 4-wire SPI and can interface with any K, J, N, R, S, T, E, or B type thermocouple.

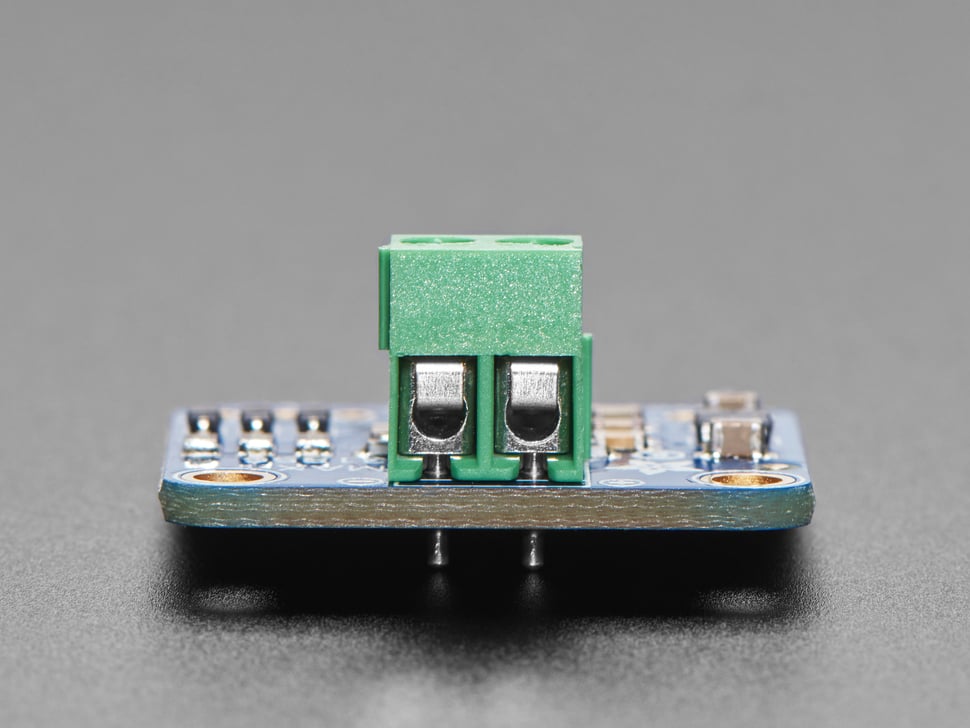

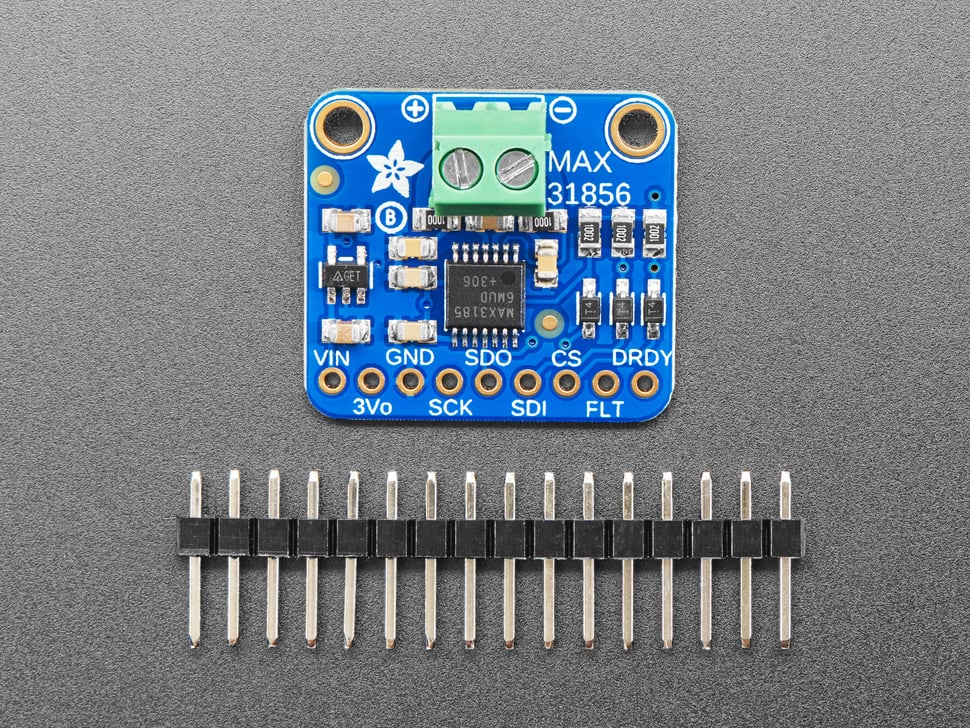

This breakout does everything for you, and can be easily interfaced with any microcontroller, even one without an analog input. This breakout board has the chip itself, a 3.3V regulator and level shifting circuitry, all assembled and tested. Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard). We even added inline resistors and a filter capacitor on-board for better stability, as recommended by Maxim. Goes great with K-type thermocouple or any other thermocouple, really!
- Works with any K, J, N, R, S, T, E, or B type thermocouple
- -210°C to +1800°C output in 0.0078125° resolution - note that many thermocouples have about ±2°C to ±6°C accuracy or worse depending on the temperature and type, so the resolution will be a lot better than the accuracy!
- Internal temperature reading
- 3.3 to 5v power supply and logic level compliant!
- SPI data requires any 4 digital I/O pins
Please note: this does not include a thermocouple! Also, the terminal blocks included with your product may be any color.
Check out our tutorial for wiring diagrams, files, software, and more!
Technical Details
EagleCAD PCB files, datasheets, Fritzing object and more in the tutorial!
Revision History:
- As of Dec 12, 2023 – We've updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen and now comes with the terminal block soldered on.
Product Dimensions: 25.0mm x 22.0mm x 3.0mm / 1.0" x 0.9" x 0.1"
Product Weight: 3.5g / 0.1oz
