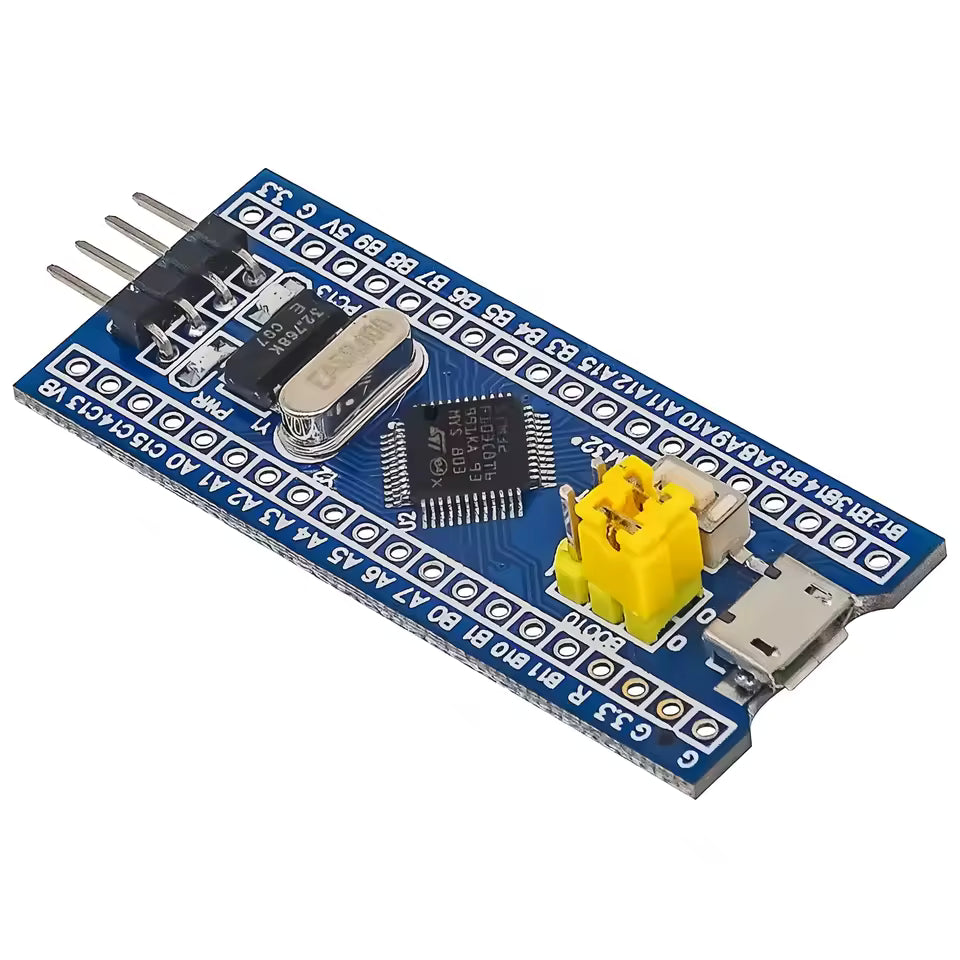

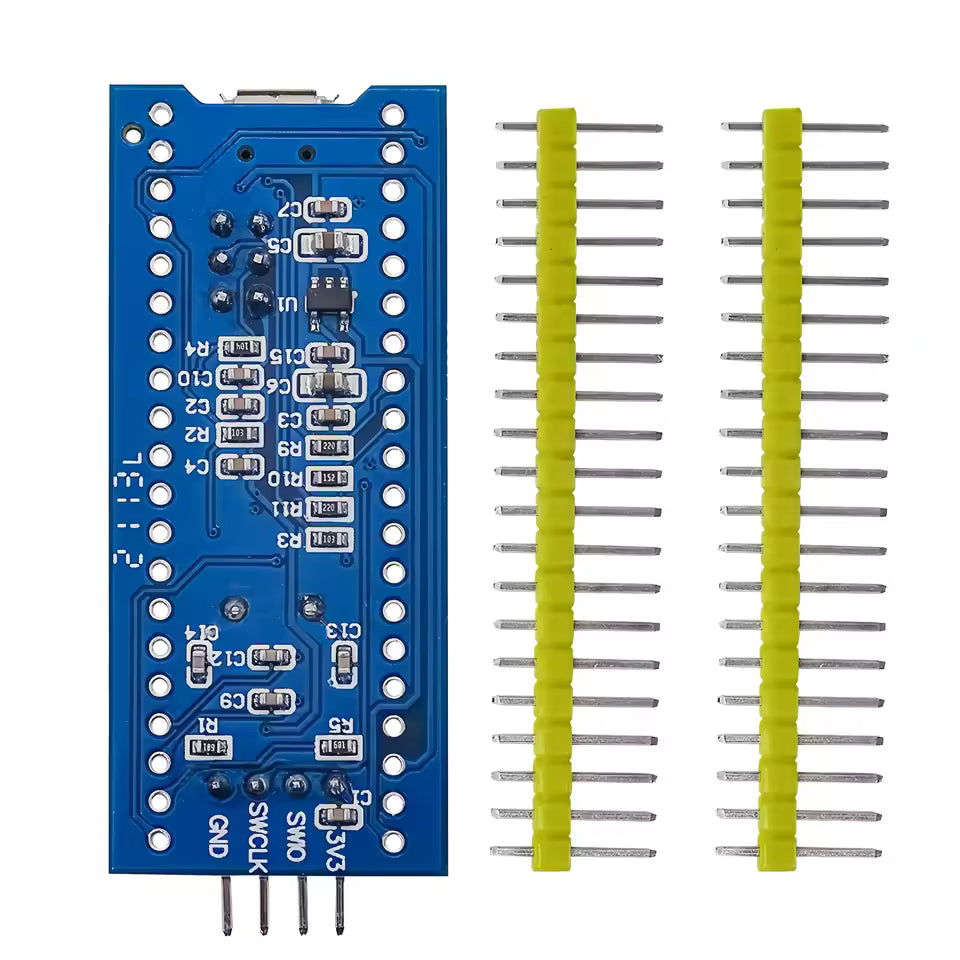

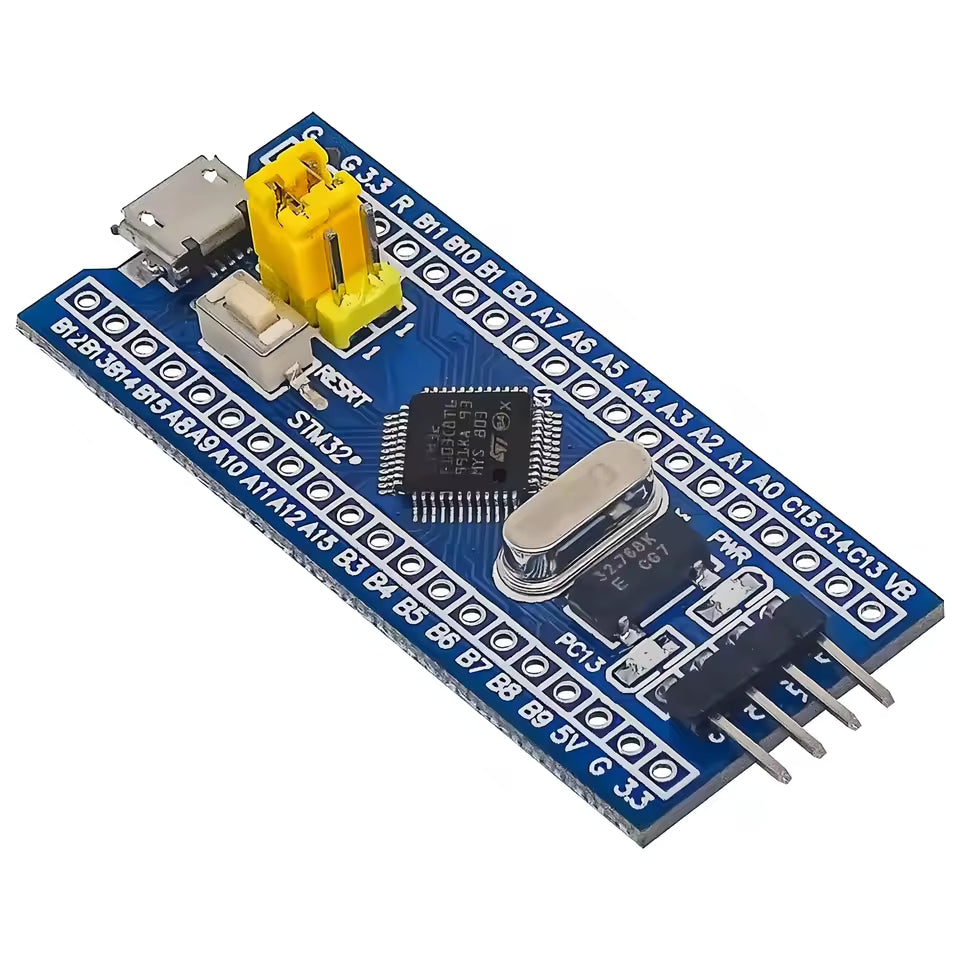

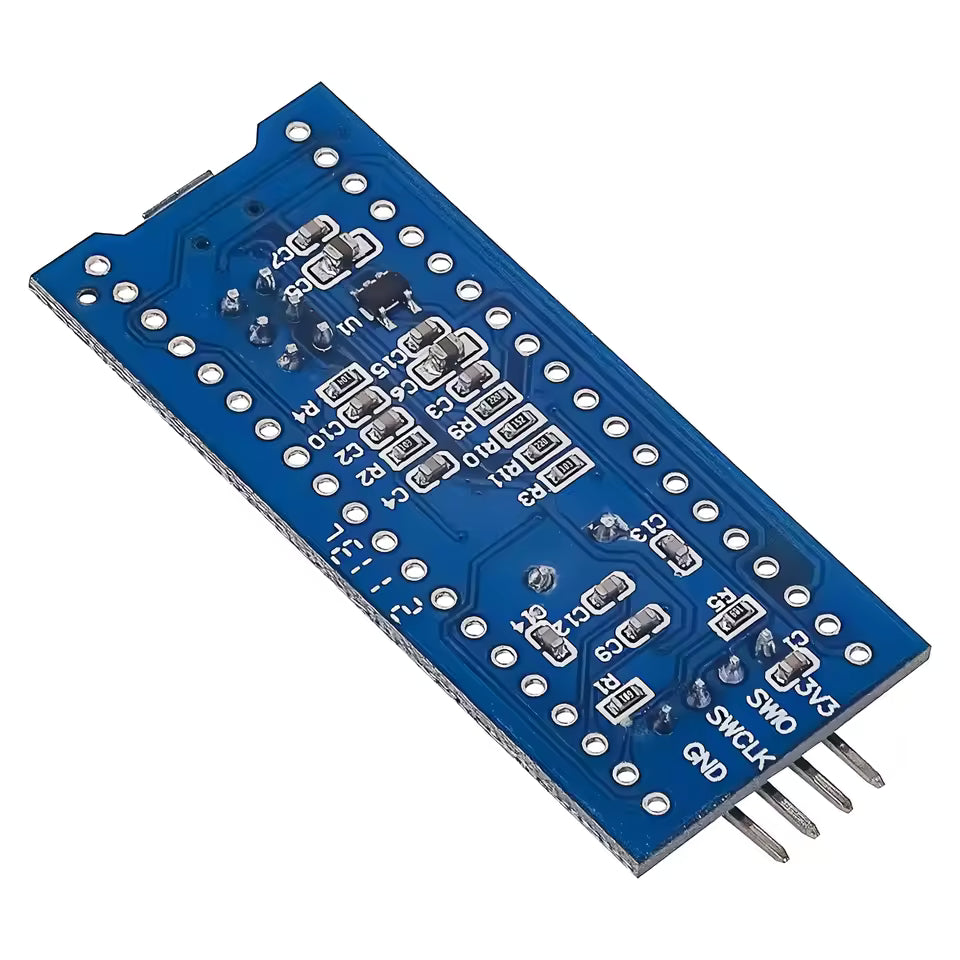

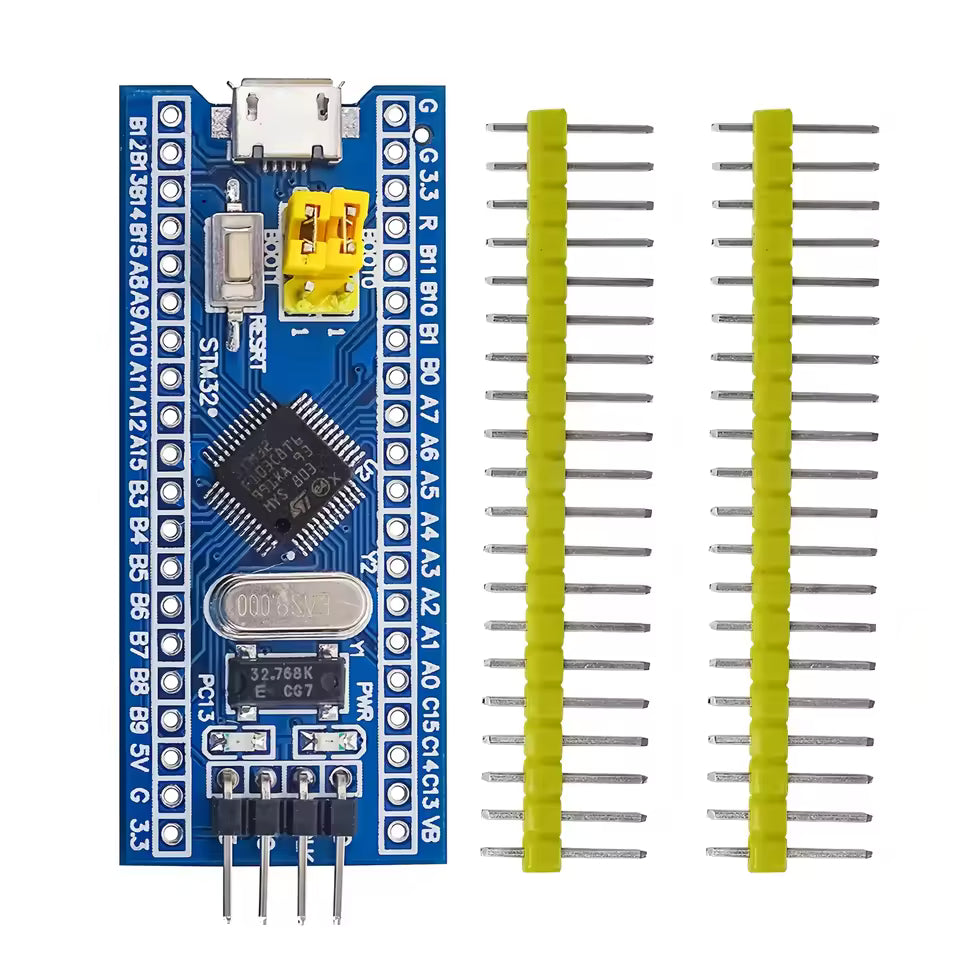

STM32 Minimum System Development Board Blue Pill STM32F103C8T6
The STM32F103C8T6 is a powerful and versatile 32-bit microcontroller from STMicroelectronics’ STM32F1 series, based on the ARM Cortex-M3 core. With a 72 MHz clock speed, 64 KB of Flash memory, and 20 KB of SRAM, it’s a popular choice for embedded systems, robotics, motor control, and hobby projects like the well-known “Blue Pill” development boards.
Key Features
- High-Performance Core – ARM Cortex-M3 running at up to 72 MHz
- Memory – 64 KB Flash, 20 KB SRAM
-
Rich Peripherals –
- 2 × I²C, 3 × SPI, 2 × USART, 1 × USB 2.0 Full-Speed
- 37 GPIO pins with up to 9 timers
- 12-bit ADC with up to 16 channels
- Operating Voltage – 2.0 V to 3.6 V
- Low Power Modes – Sleep, Stop, and Standby for battery efficiency
- Package – LQFP-48 (48 pins)
- Wide Applications – Industrial automation, IoT devices, robotics, motor drivers, and custom electronics
This MCU is widely supported by STM32CubeIDE, Arduino (via STM32duino), and a range of other development environments, making it ideal for both professionals and hobbyists who need a reliable, cost-effective microcontroller for performance-critical applications.
