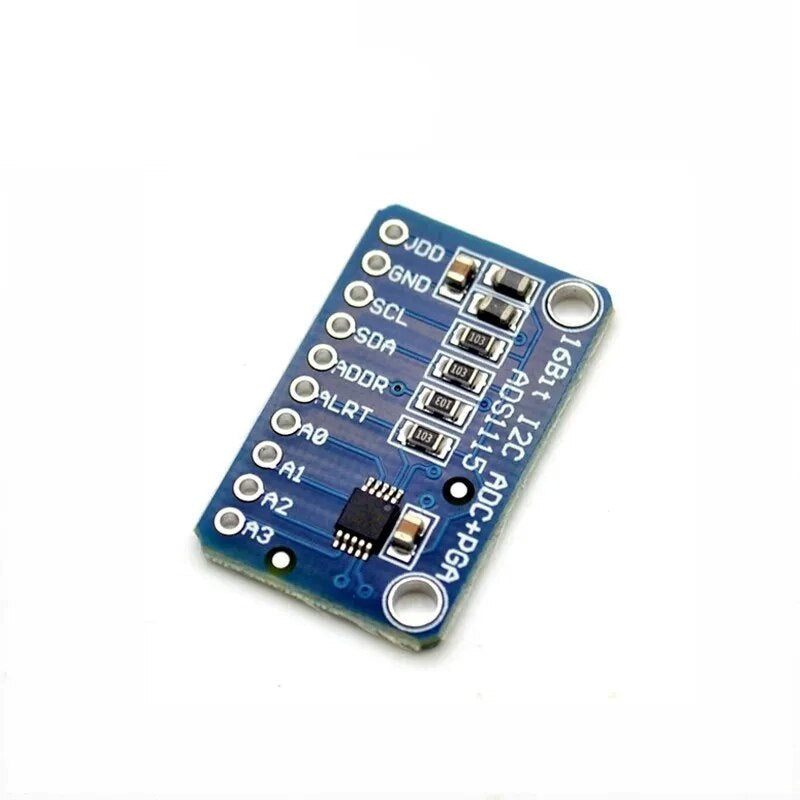

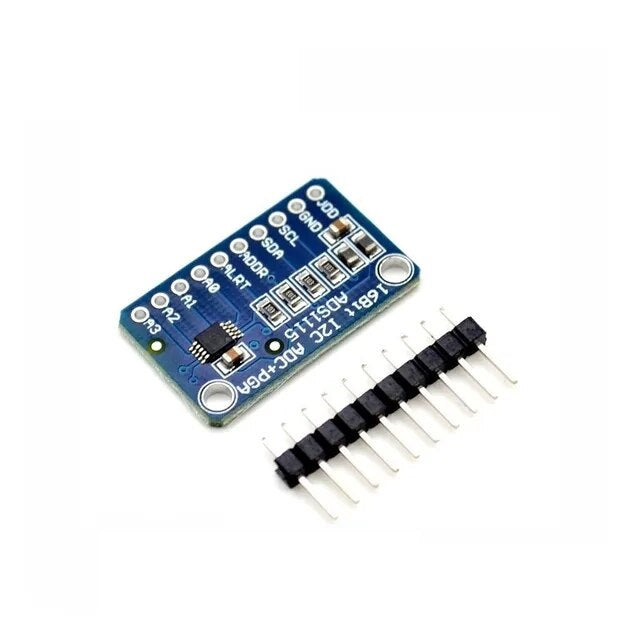

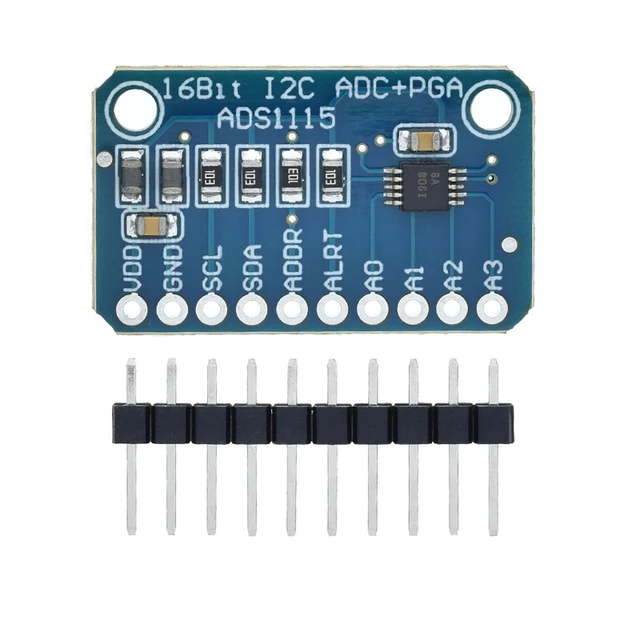

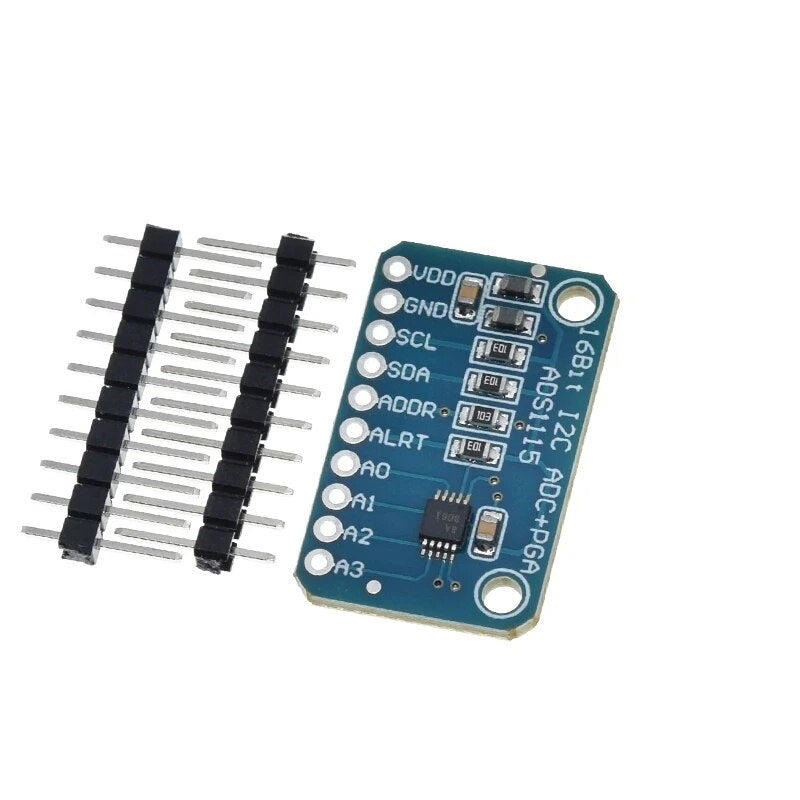

ADS1115 ADC 4 Channel Pro Gain Amplifier
$8.60 AUD
Unit price
/
Unavailable
The ADS1115 is a versatile analog-to-digital converter (ADC) that offers precision measurement capabilities. Let’s explore its features and specifications:
Features:
- High Precision:
- Offers 16-bit resolution for accurate measurements.
- Configurable Channels:
- Can be configured as 4 single-ended input channels or 2 differential channels.
- Programmable Gain Amplifier (PGA):
- Boosts smaller single/differential signals to the full range (up to x16).
- Wide Supply Range:
- Operates from 2V to 5.5V power/logic.
- Easy Interfacing:
- Communicates via the I2C protocol.
- Address can be changed for up to 4 ADS1115 devices on a single 2-wire I2C bus.
- Ultra-Small Package:
- Compact dimensions: 2mm x 1.5mm x 0.4mm.
- Low Current Consumption:
- Only 150μA in continuous-conversion mode.
Specifications:
- ADC Bit Rate: 16-bit
- Input Voltage Range: 2.0V to 5.5V
- Channels: 4 single-ended (AN0, AN1, AN2, AN3) or 2 differential inputs
- Programmable Data Rate: 8sps to 860sps
- Input Ranges (Programmed Control):
- -0.256V to +0.256V
- -0.512V to +0.512V
- -1.024V to +1.024V
- -2.048V to +2.048V
- -4.096V to +4.096V
- -6.144V to +6.144V
- I2C Addresses: 7-bit addresses between 0x48 and 0x4B
- Size: Approximately 18mm x 28mm
The ADS1115 is an excellent choice for precision measurements in various applications, including sensors, data acquisition, and instrumentation.
