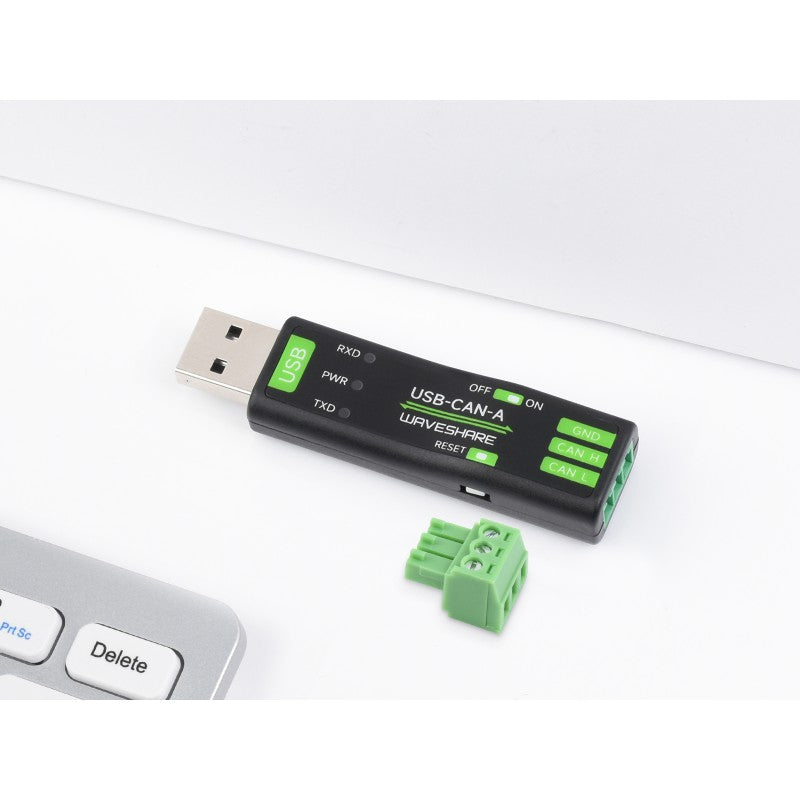

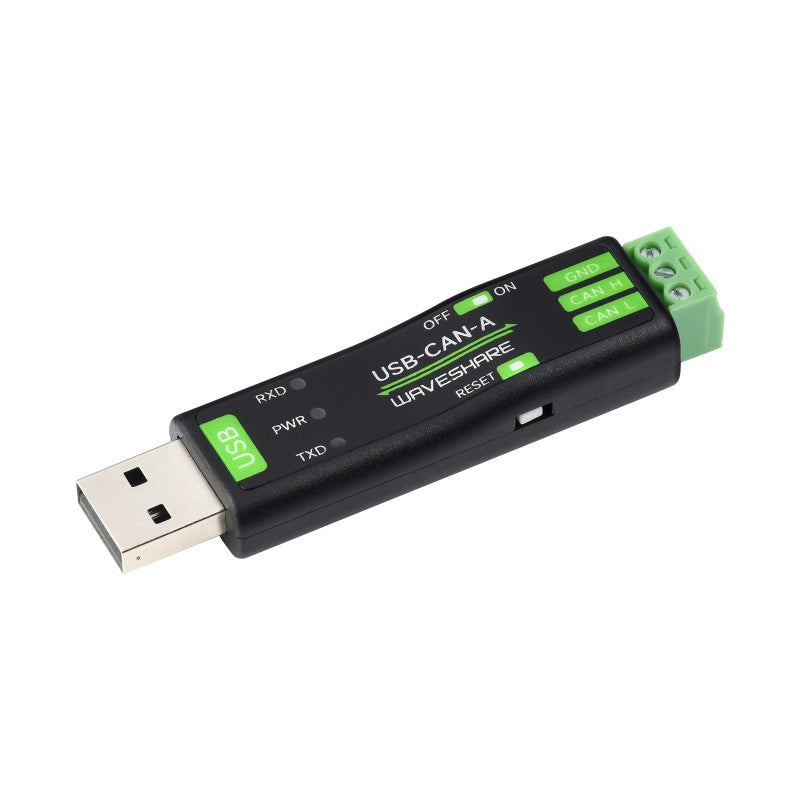

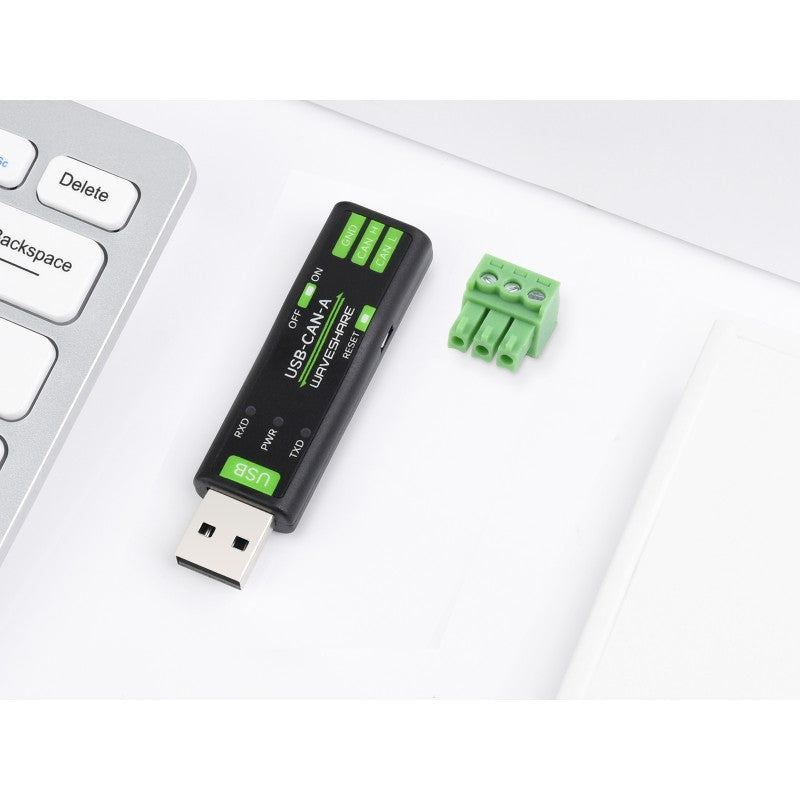

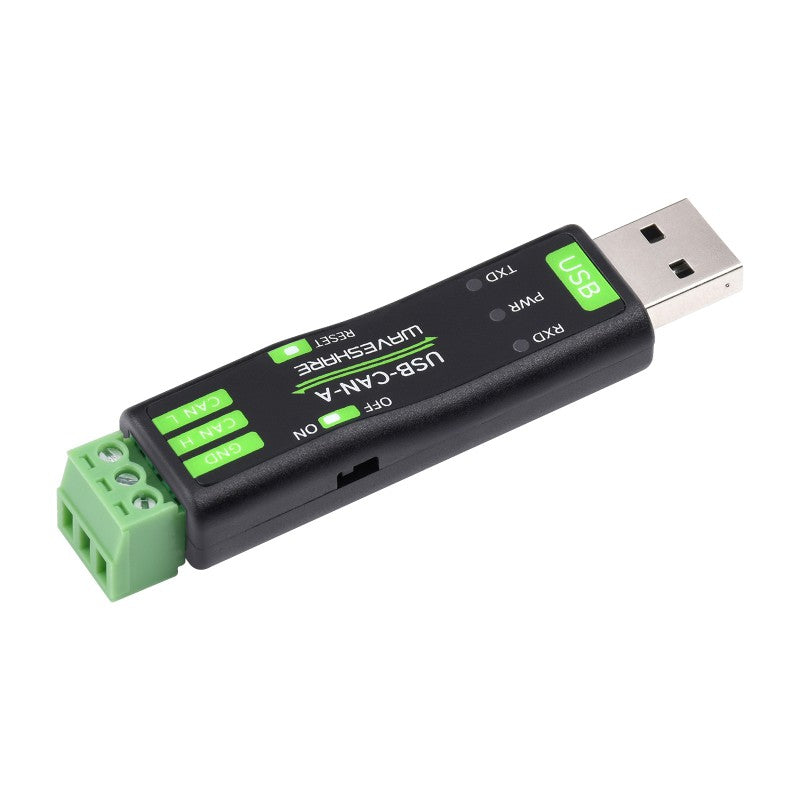

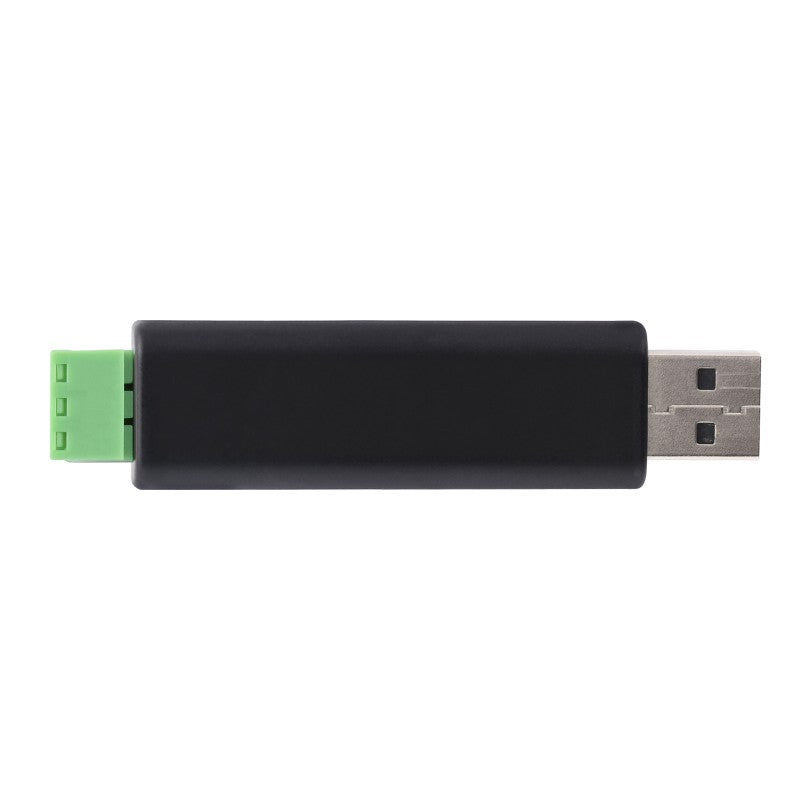

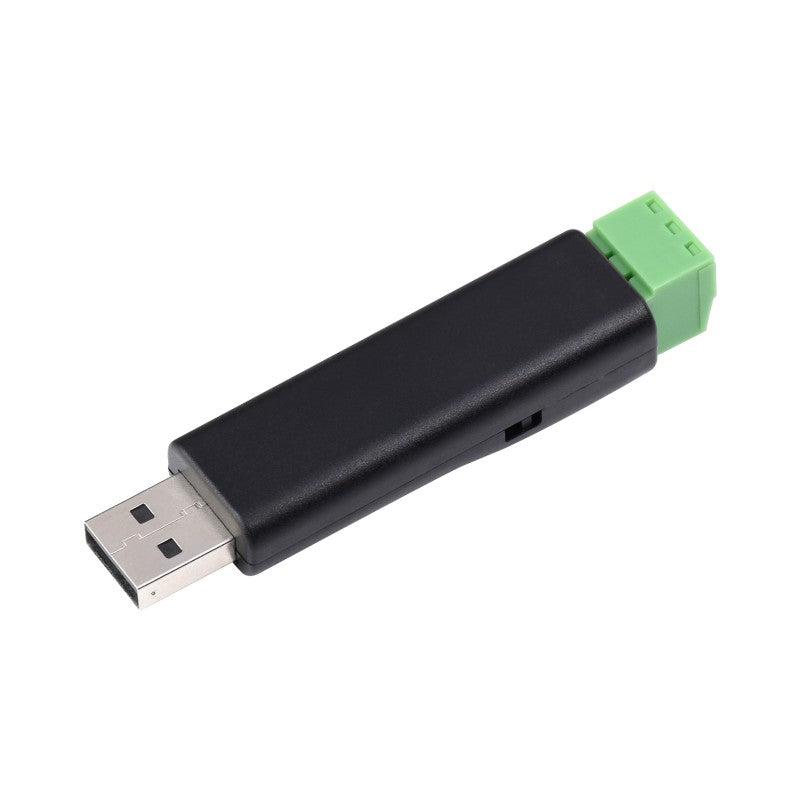

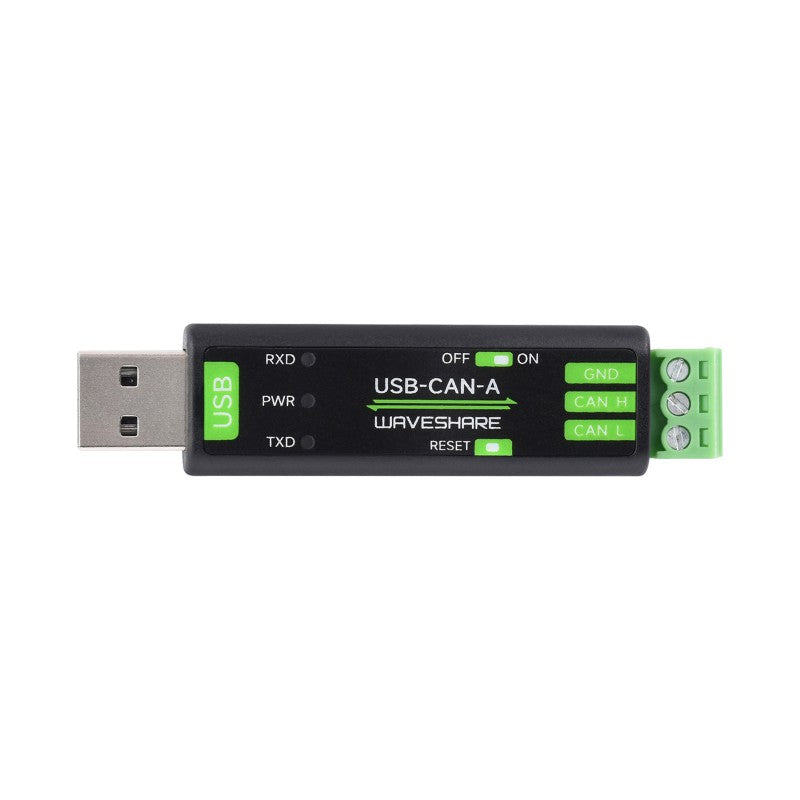

USB to CAN Adapter Model A Converter

Waveshare  |  SKU: WS-23635
$22.30 AUD
$20.27 exc GST

Delivery and Shipping

Delivery Options

We offer several delivery choices to fit your needs:

  • FREE Delivery: $0. Enjoy Free AusPost Parcel Standard Delivery on orders over $100 in value. Exclusions may apply.
  • AusPost Untracked Letter: $3. Delivery in 3-8 business days (untracked). No refunds or replacements without proof of receiving the order.
  • AusPost Parcel Standard: $9. Tracked delivery in 2-6 business days.
  • AusPost Parcel Express: $13. Express tracked delivery in 1-3 business days.
  • Pickup: $0. Email us to arrange a pickup from our location in Huntingdale 3166 in Melbourne at support@zaitronics.com.au. More details can be found in our contact page.

Additional Information

  • Non-metro addresses in WA, NT, SA & TAS may require extra time.
  • Certain batteries (like LiPo) cannot be shipped by air, affecting Express Post availability.
  • We recommend selecting tracked options for valuable items. Untracked orders will not receive tracking numbers or refunds without proof of delivery.
  • Note: Wherever possible, we will combine orders to save on shipping and reduce packaging waste.
  • Note: Orders containing backordered item will delay delivery until all items are available

Warranty & Refund Policy

Warranty & Refund Policy

  • Standard Warranty: 12 months for all products. Low-cost hobby parts have a 90-day warranty unless safe handling is shown.
  • Exceptions: Kits and interfaceable electronics may not be covered if damaged due to misuse.
  • Returns: Contact support via your order confirmation email within 14 days of purchase. Items must be unopened and in original packaging. Proof of purchase is required.
  • Defective/Damaged Items: Notify us within 30 days for a free refund or replacement. Exclusions apply.
  • Return Shipping Costs: Paid by the customer unless the item is defective. Shipping costs are non-refundable.
Features at a glance
  • Supports CAN2.0A (standard frame) and CAN2.0B (extended frame)
  • CAN baud rate is configurable in the range of 5Kbps-1Mbps
  • Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode
  • Supports multiple CAN data sending modes: single frame, multiple frames, manually, regularly and cyclic sending
  • Supports multiple CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured data
  • Data can be saved as TXT or Excel
  • Supports CAN bus detection for status checking
  • Sending/receiving CAN data with time scale, allows sequentially displaying
  • Baud rate of USB virtual COM port is configurable in the range of 9600 ~ 2000000bps (2000000bps by default)
  • Supports setting working parameters by configuration software or serial command, can be saved after power off
  • Adopts STM32 chip solution, stable and reliable communication
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit
  • Comes with master computer software for Windows system, easy to use
  • Easy secondary development, just need to modify the sending and receiving commands
Primary Functions

Collects data from CAN bus to PC via USB for transceiver control, data analysis,
acquisition and monitoring of CAN bus network

Support Multiple Working modes

WIKI: www.waveshare.com/wiki/USB-CAN-A
