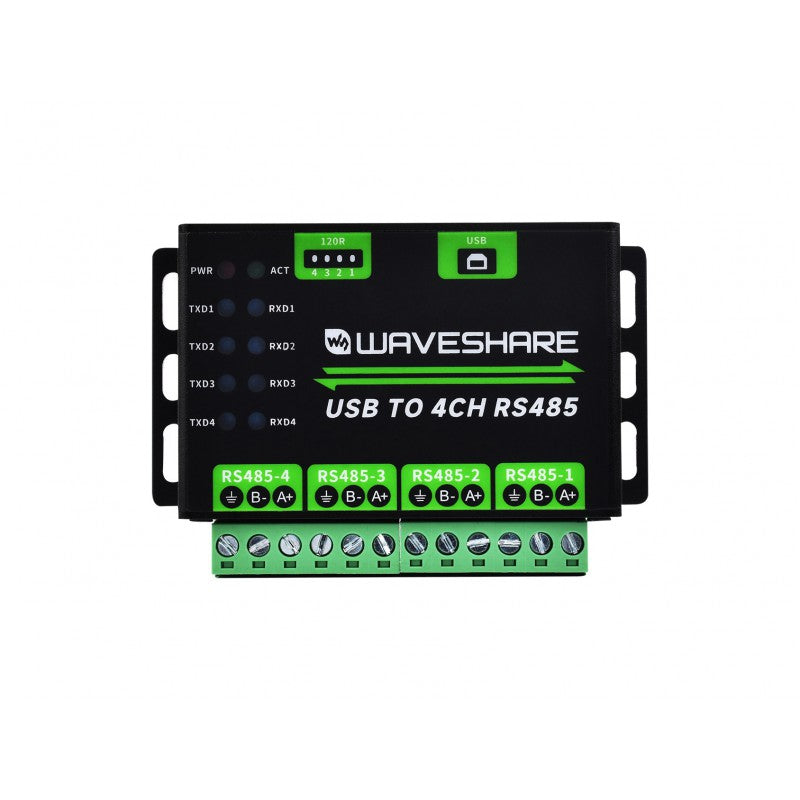

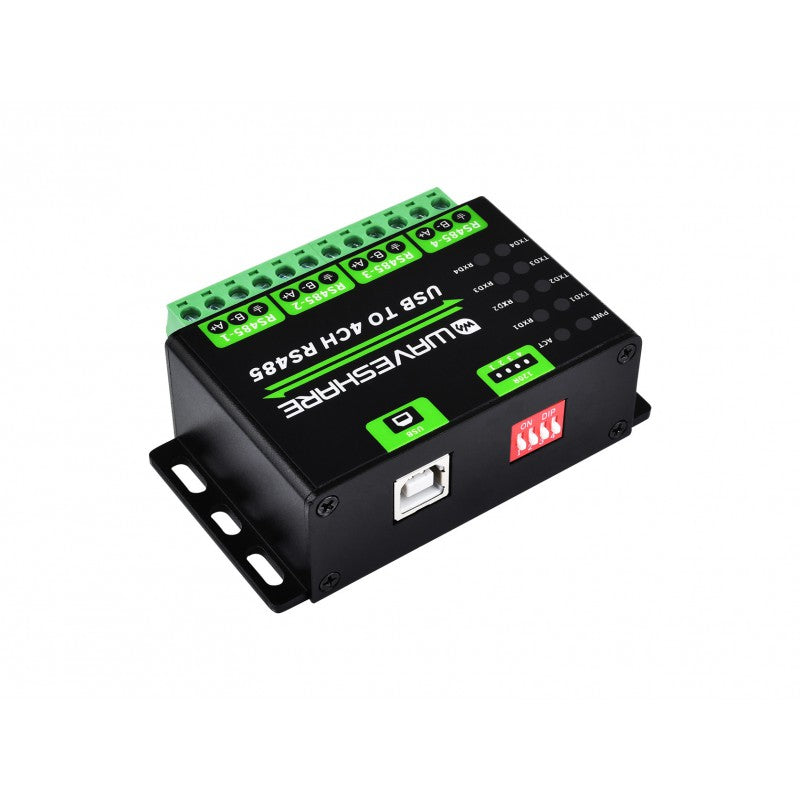

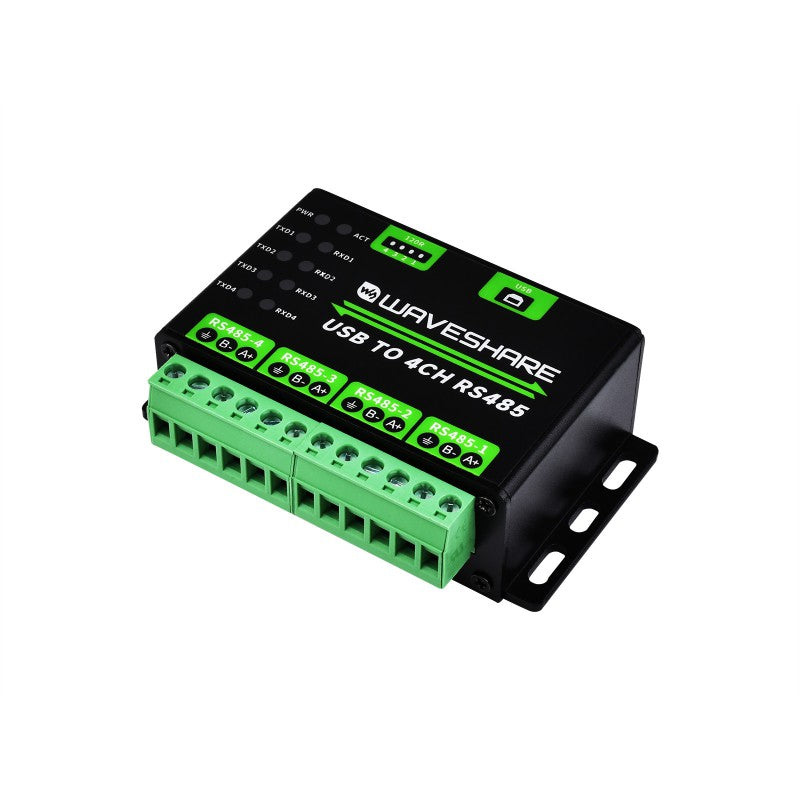

Industrial USB TO 4 Channel RS485 Converter

Name: Industrial USB TO 4 Channel RS485 Converter
Brand: Waveshare
Price: 25.4 AUD
Availability: OutOfStock

Waveshare | SKU: WS-25219

$25.40 AUD

$23.09 exc GST

★ ★ ★ ★ ★ No reviews yet

Features

Extending USB to 4CH RS485, allows concurrent and independent communication for each channel
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance

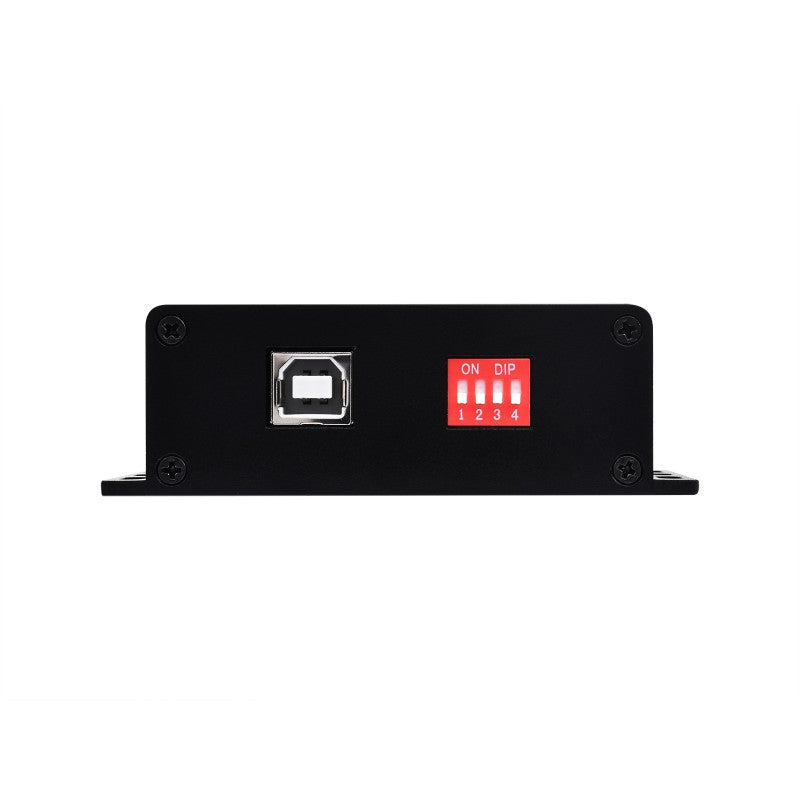

Onboard RS485 output terminal 120R resistors, enabled/disabled via DIP switch

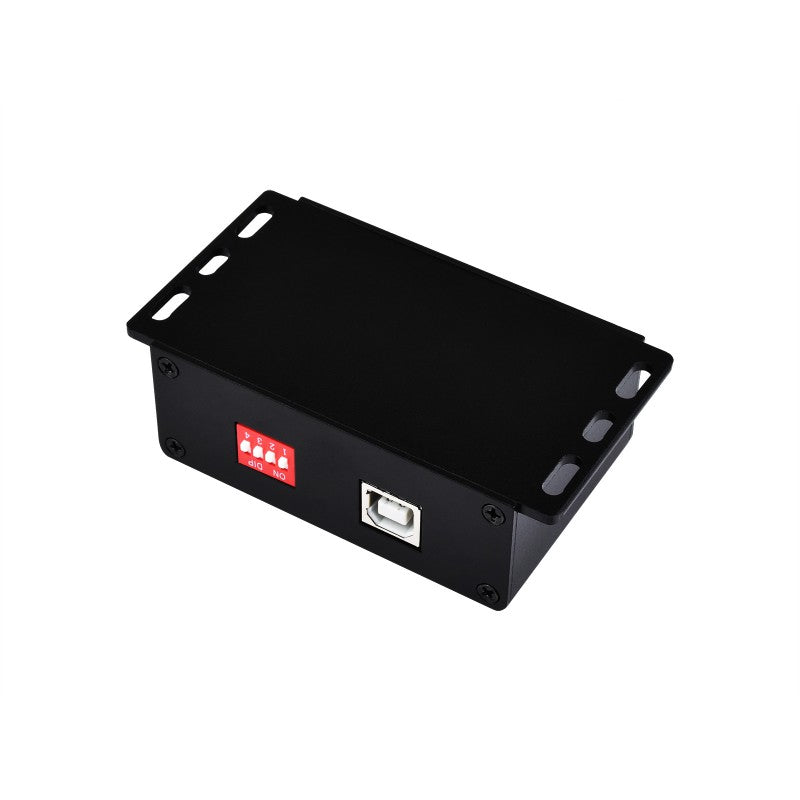

Aluminium alloy case with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted

Specifications

PRODUCT TYPE	Industrial Grade USB to RS485 converter
Host port	USB
Device port	RS485
Baudrate	1200bps ~ 460800bps
USB	Operating voltage	5V
	Connector	USB-B
	Protection	500mA resettable fuse, ESD protection
	Transmission distance	About 5m

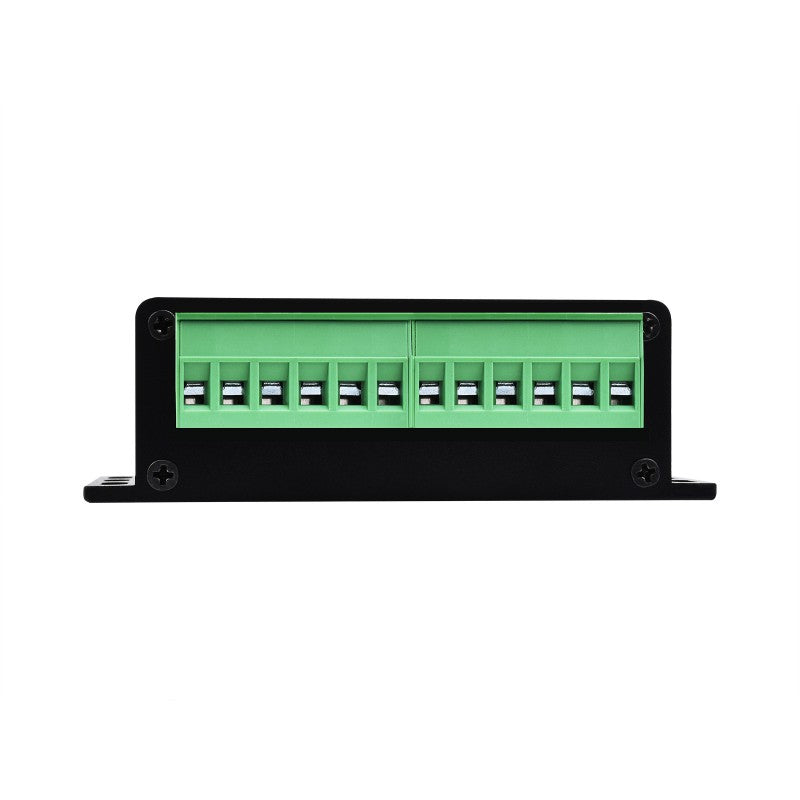

RS485	Connector	Screw terminal
	Protection	600W lightningproof and surge-suppress, 15KV ESD protection
	Transmission distance	Maximum communication distance is about 1200m (at a low rate, with 120R resistor turned on)
	Transmission mode	Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Operating environment	Temperature	-40 ~ 85℃
Operating environment	Humidity	5%RH ~ 95%RH
Operating system	Win7/8/8.1/10/11, Mac, Linux, Android

Transmission distance up to 1.2km

The USB signal can be converted into 4 balanced differential RS485 signals and the transmission rate is stable. The reliable speed is 1200~460800bps, the transmission distance is about 1.2km for RS485, and about 5 meters for USB.
