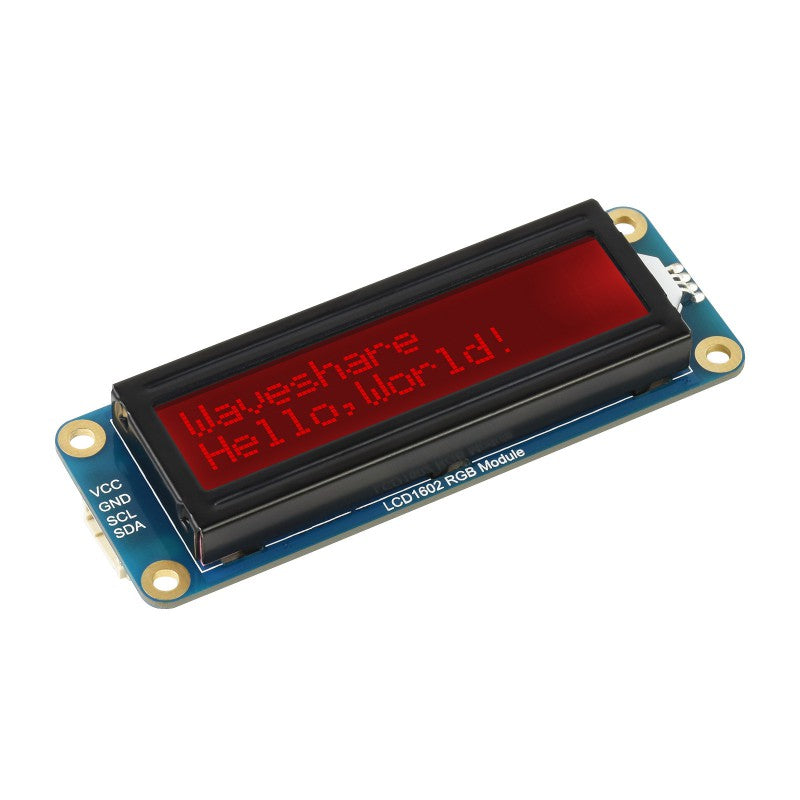

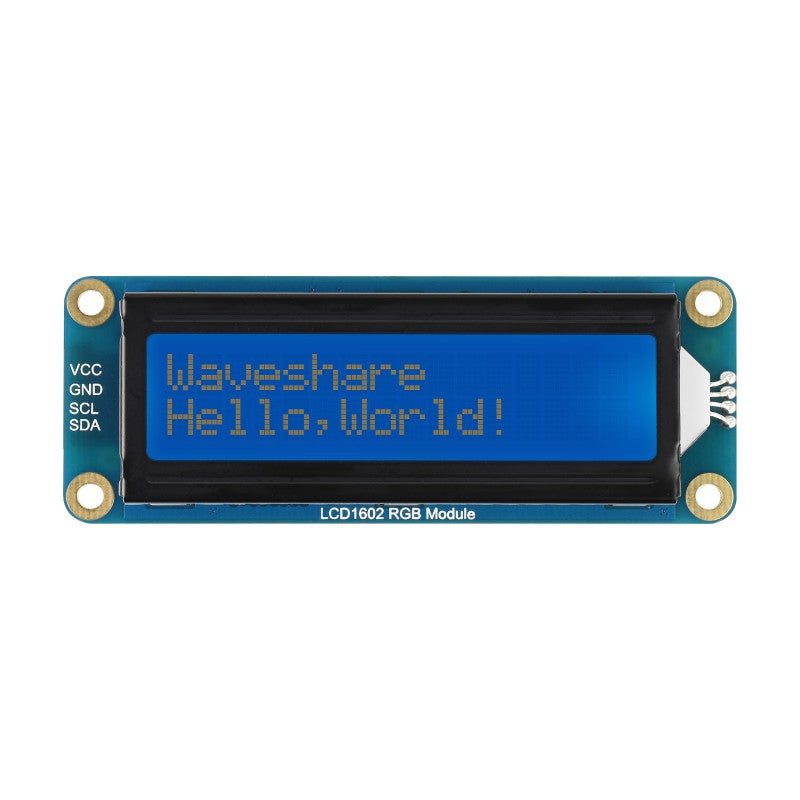

1602 LCD Display RGB Backlight 16x2 - I2C 3.3V/5V
Waveshare | SKU:
WS-19537
$21.90 AUD
Unit price
/
Unavailable
$19.91 exc GST
1602 LCD Display RGB Backlight 16x2 - I2C 3.3V/5V is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Delivery Options
We offer several delivery choices to fit your needs:
- FREE Delivery: $0. Enjoy Free AusPost Parcel Standard Delivery on orders over $100 in value. Exclusions may apply.
- AusPost Untracked Letter: $3. Delivery in 3-8 business days (untracked). No refunds or replacements without proof of receiving the order.
- AusPost Parcel Standard: $9. Tracked delivery in 2-6 business days.
- AusPost Parcel Express: $13. Express tracked delivery in 1-3 business days.
- Pickup: $0. Email us to arrange a pickup from our location in Huntingdale 3166 in Melbourne at support@zaitronics.com.au. More details can be found in our contact page.
Additional Information
- Non-metro addresses in WA, NT, SA & TAS may require extra time.
- Certain batteries (like LiPo) cannot be shipped by air, affecting Express Post availability.
- We recommend selecting tracked options for valuable items. Untracked orders will not receive tracking numbers or refunds without proof of delivery.
- Note: Wherever possible, we will combine orders to save on shipping and reduce packaging waste.
- Note: Orders containing backordered item will delay delivery until all items are available
Warranty & Refund Policy
Warranty & Refund Policy
Warranty & Refund Policy
- Standard Warranty: 12 months for all products. Low-cost hobby parts have a 90-day warranty unless safe handling is shown.
- Exceptions: Kits and interfaceable electronics may not be covered if damaged due to misuse.
- Returns: Contact support via your order confirmation email within 14 days of purchase. Items must be unopened and in original packaging. Proof of purchase is required.
- Defective/Damaged Items: Notify us within 30 days for a free refund or replacement. Exclusions apply.
- Return Shipping Costs: Paid by the customer unless the item is defective. Shipping costs are non-refundable.
Features at a glance
- Incorporates character LCD panel LCD1602
- Adjustable RGB backlight color, up to 16M (2563) backlight colors in theory
- I2C control interface, only two signal pins are required, saving the IO resource
- Compatible with 3.3V/5V operating voltage
- Comes with development resources and manual (Raspberry Pi/Jetson Nano/Arduino examples)
Specifications
Operating voltage | 3.3 ~ 5V | LCD controller | AiP31068 |
---|---|---|---|
Communication Interface | I2C | RGB driver | PCA9633 |
Display Panel | character LCD | Display size | 64.5 × 16.0mm |
Characters | 16 × 2 | Dimensions | 87.0 × 32.0 × 13.0mm |
Backlight colors | 16M | Operating voltage | -20 ~ +70℃ |

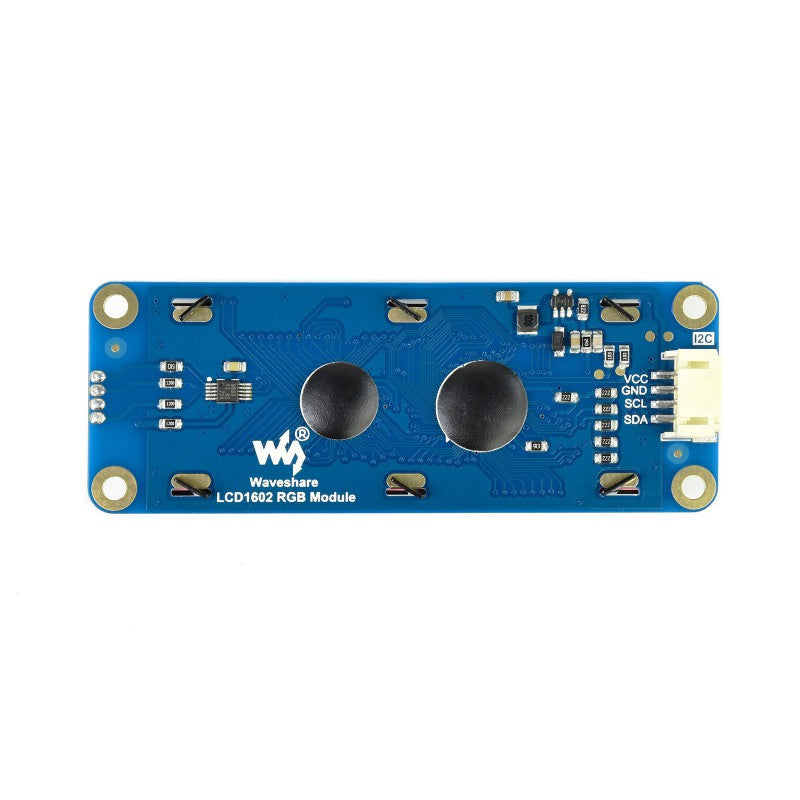

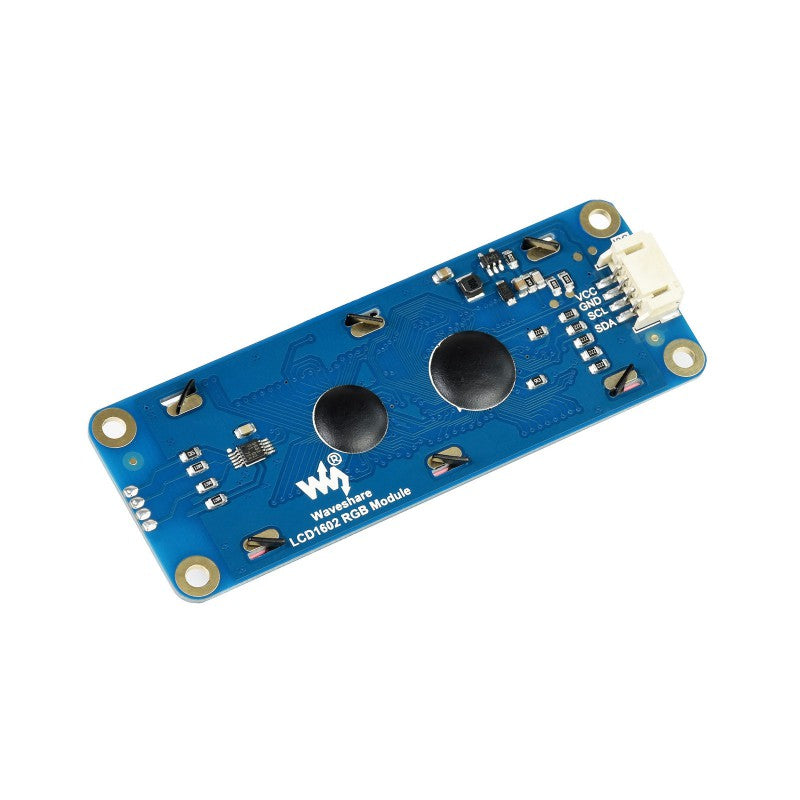

I2C control interface
for connecting with host boards like Raspberry Pi / Arduino...
VCC | 3.3V ~ 5V power input |
GND | GND |
SCL | I2C clock pin |
SDA | I2C data pin |
Wiki: LCD1602_RGB_Module
