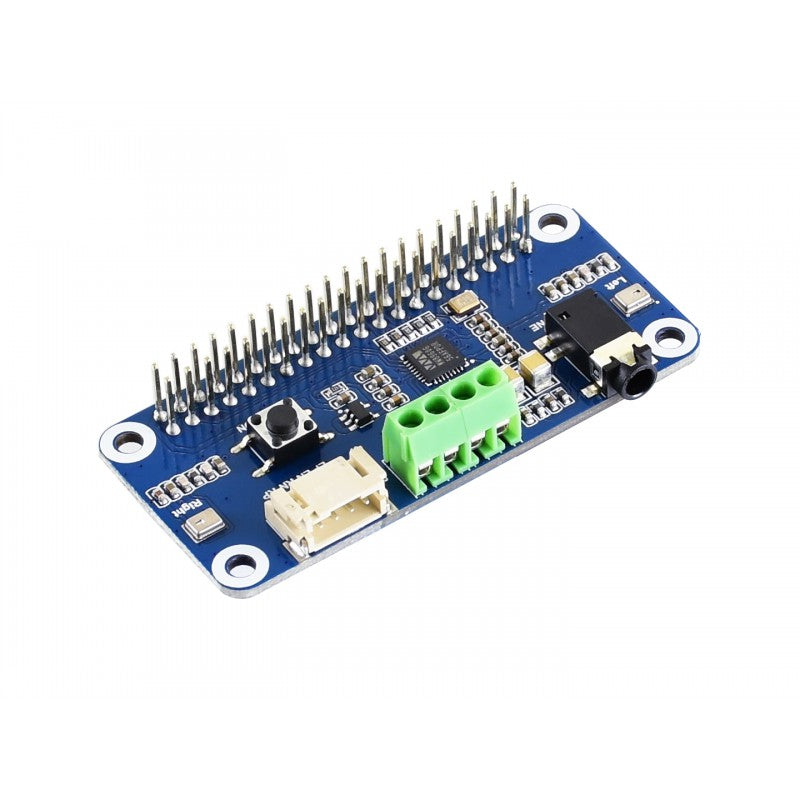

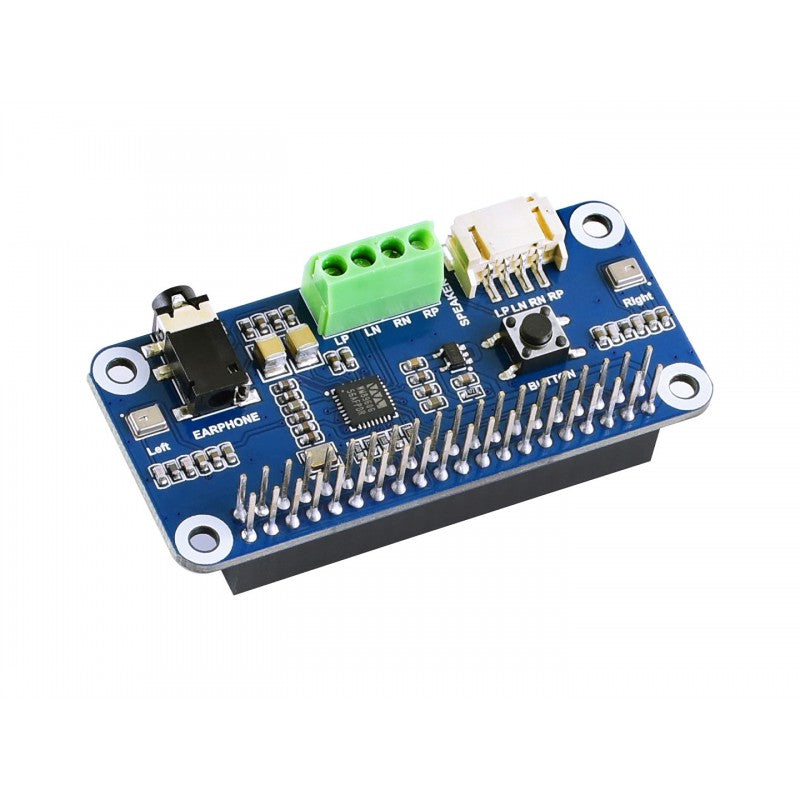

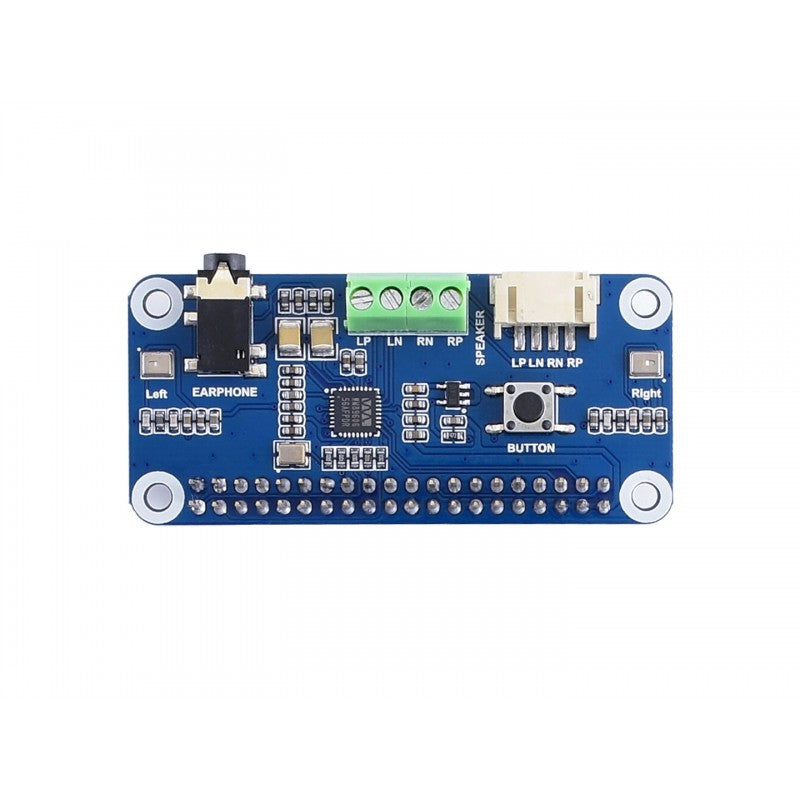

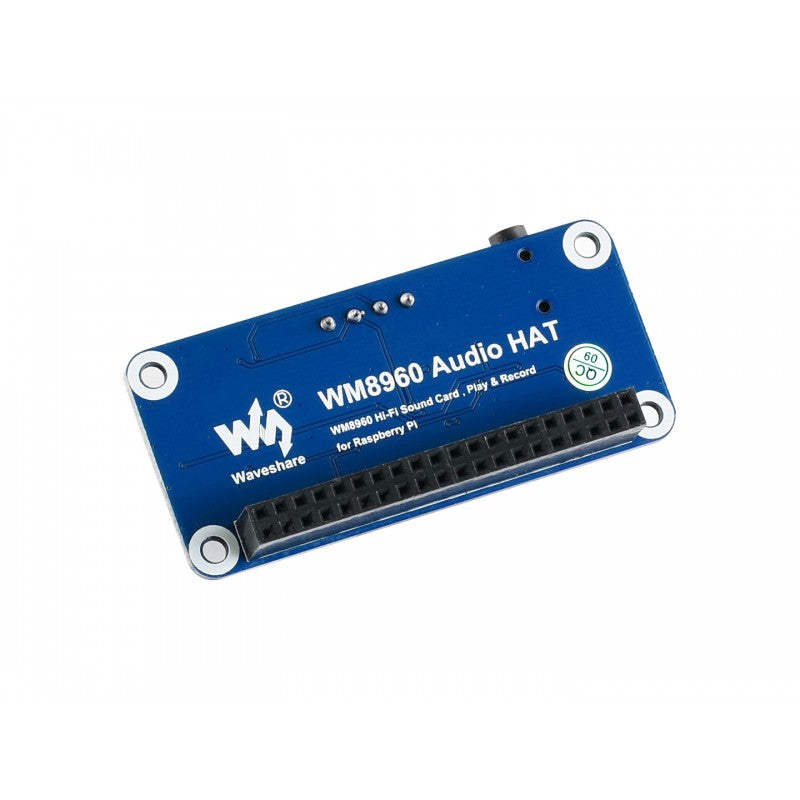

WM8960 Hi-Fi Sound Card HAT for Raspberry Pi

Adafruit  |  SKU: WS-15668
$27.80 AUD
$25.27 exc GST

Delivery and Shipping

Delivery Options

We offer several delivery choices to fit your needs:

  • FREE Delivery: $0. Enjoy Free AusPost Parcel Standard Delivery on orders over $100 in value. Exclusions may apply.
  • AusPost Untracked Letter: $3. Delivery in 3-8 business days (untracked). No refunds or replacements without proof of receiving the order.
  • AusPost Parcel Standard: $9. Tracked delivery in 2-6 business days.
  • AusPost Parcel Express: $13. Express tracked delivery in 1-3 business days.
  • Pickup: $0. Email us to arrange a pickup from our location in Huntingdale 3166 in Melbourne at support@zaitronics.com.au. More details can be found in our contact page.

Additional Information

  • Non-metro addresses in WA, NT, SA & TAS may require extra time.
  • Certain batteries (like LiPo) cannot be shipped by air, affecting Express Post availability.
  • We recommend selecting tracked options for valuable items. Untracked orders will not receive tracking numbers or refunds without proof of delivery.
  • Note: Wherever possible, we will combine orders to save on shipping and reduce packaging waste.
  • Note: Orders containing backordered item will delay delivery until all items are available

Warranty & Refund Policy

Warranty & Refund Policy

  • Standard Warranty: 12 months for all products. Low-cost hobby parts have a 90-day warranty unless safe handling is shown.
  • Exceptions: Kits and interfaceable electronics may not be covered if damaged due to misuse.
  • Returns: Contact support via your order confirmation email within 14 days of purchase. Items must be unopened and in original packaging. Proof of purchase is required.
  • Defective/Damaged Items: Notify us within 30 days for a free refund or replacement. Exclusions apply.
  • Return Shipping Costs: Paid by the customer unless the item is defective. Shipping costs are non-refundable.
Overview

This is a sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording, what's more, it can directly drive speakers to play music.

Features

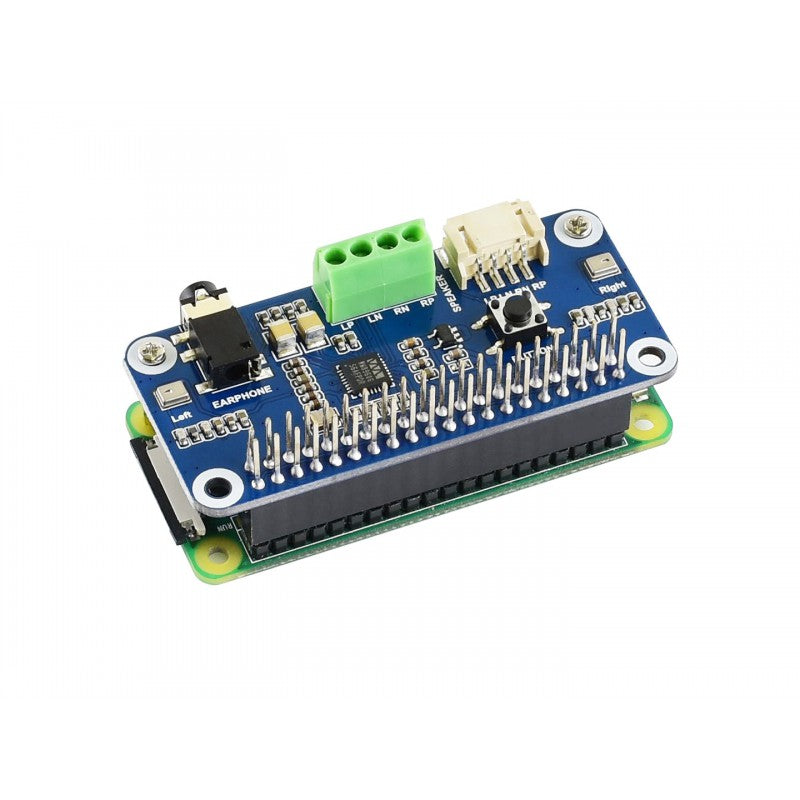

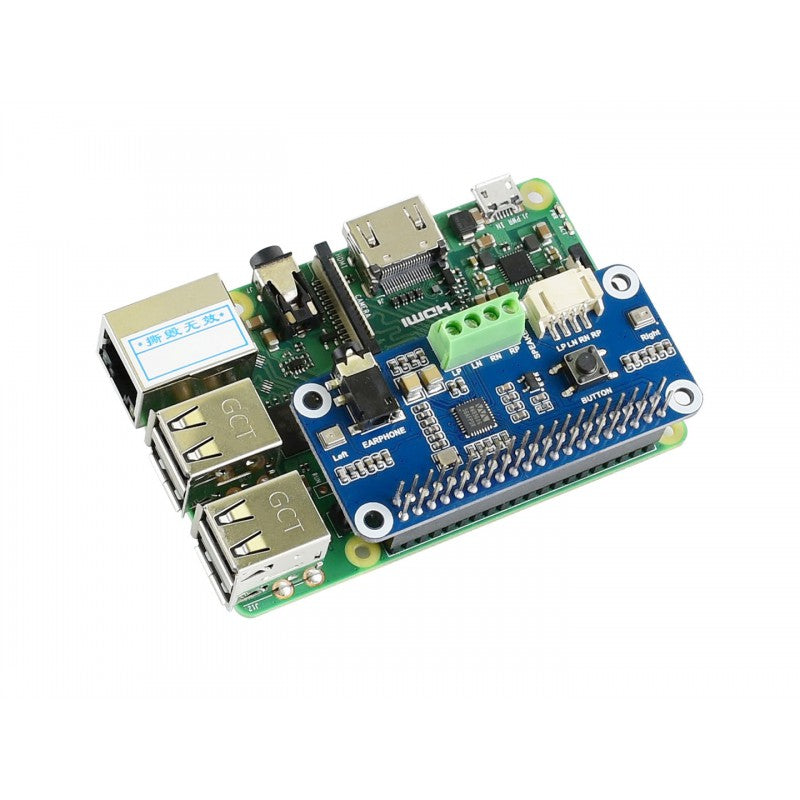

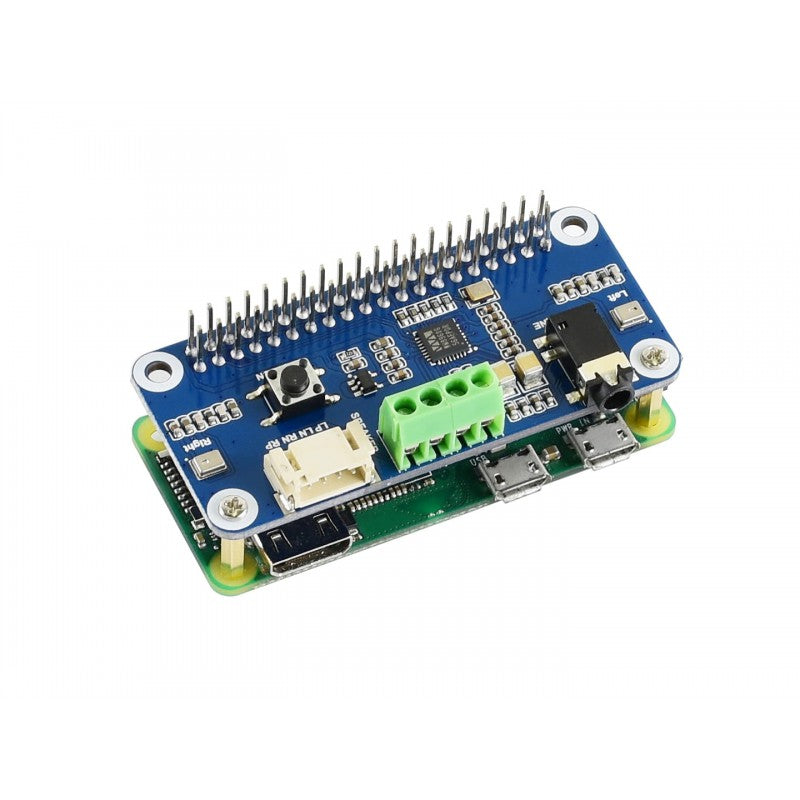

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Integrates WM8960 low power stereo CODEC, communicates via I2S interface
  • Integrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound quality
  • Onboard standard 3.5mm earphone jack, play music via external earphone

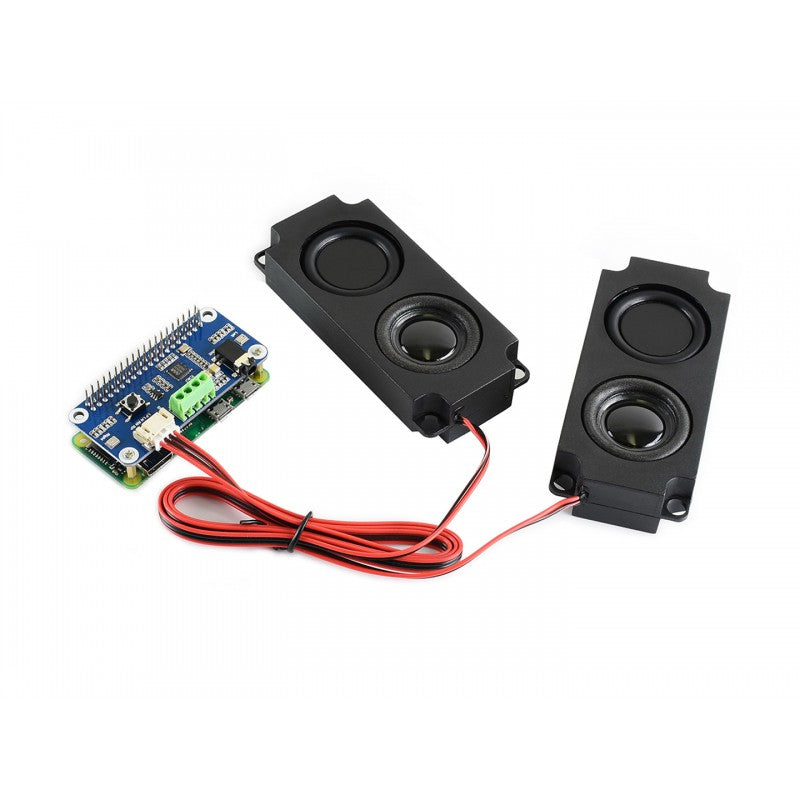

  • Onboard dual-channel speaker interface, directly drives speakers
  • Supports sound effects such as stereo, 3D surrounding, etc.
  • Comes with development resources and manual (python demo code for playing / recording)

Specifications

  • CODEC: WM8960
  • Power supply: 5V
  • Logic voltage: 3.3V
  • Control interface: I2C
  • Audio interface: I2S
  • DAC signal-noise ratio: 98dB
  • ADC signal-noise ratio: 94dB
  • Earphone driver: 40mW (16Ω@3.3V)
  • Speaker driver: 1W per channel (8Ω BTL)
Dimensions

WM8960 Audio HAT dimensions

Development Resources

Wiki : www.waveshare.com/wiki/WM8960_Audio_HAT
